5. Check Injectors

1. Stop engine and then turn ignition switch ON.
2. Check voltage between ECM terminals 5, 6, 7,13,14,15,16,17 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

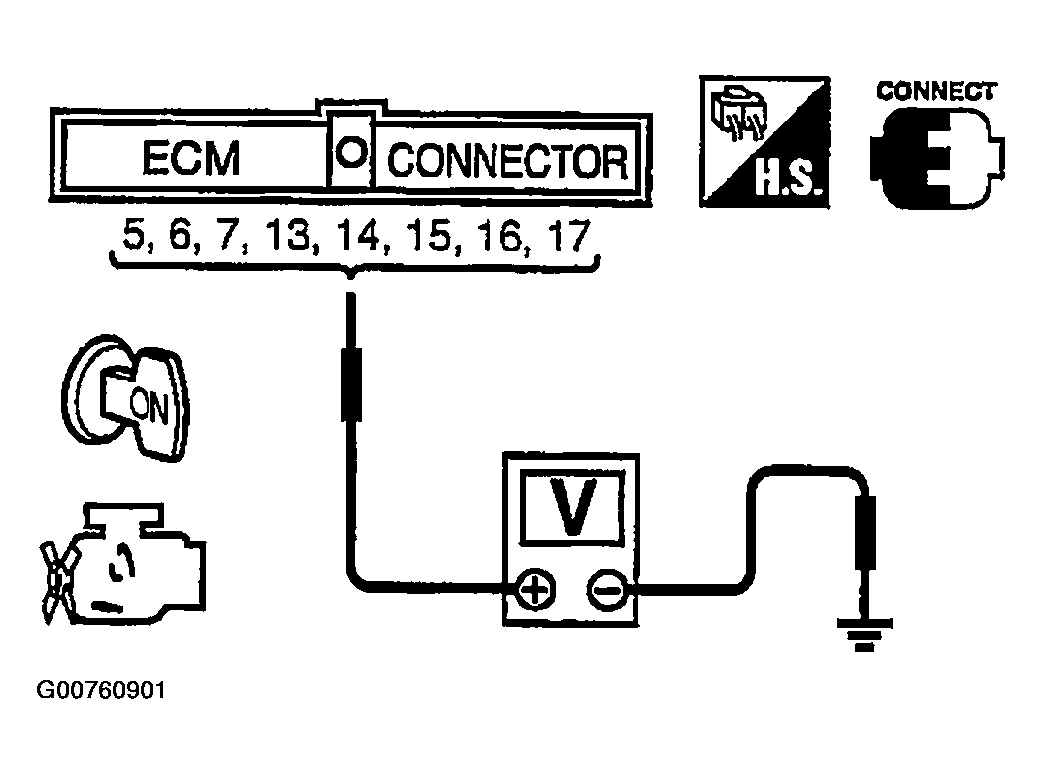

   Fig 1: Checking voltage between ECM terminals 5, 6, 7,13,14,15,16,17 & ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Refer to Wiring Diagram for Injectors, Wiring Diagram  .

OK or NG

OK : GO TO 6.

NG : Perform Diagnostic Procedure  .
