10. Check If EVAP Canister Saturated With Water

1. Remove EVAP canister with EVAP canister vent control valve attached.
2. Does water drain from the EVAP canister? See Fig 1.

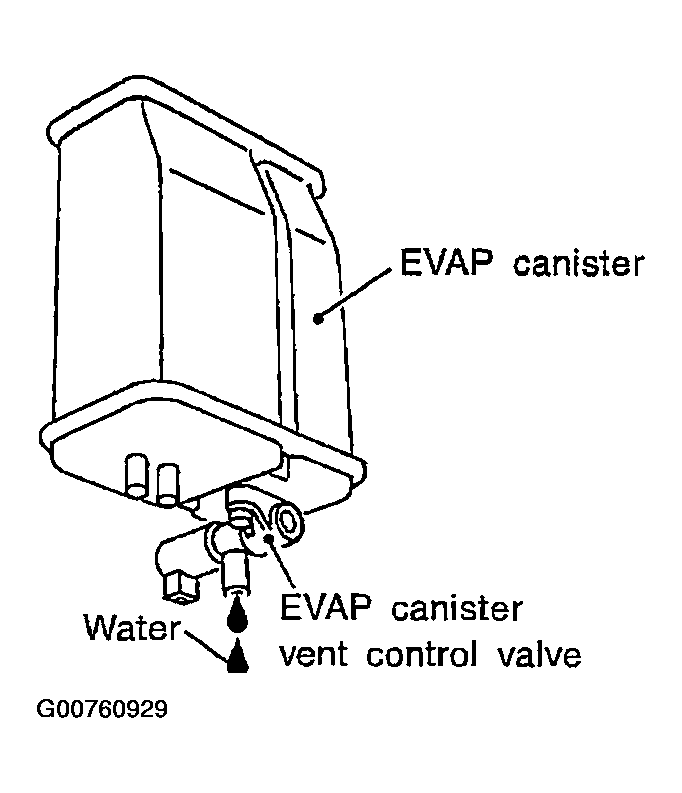

Fig 1: Checking Canister for water

Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

Yes : GO TO 11.

No (With CONSULT-II): GO TO 13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION .

No (Without CONSULT-II): GO TO 14. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION .
