2. Check PSP Sensor Power Supply Circuit

1. Disconnect power steering pressure (PSP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

OK or NG

OK : GO TO 4.

NG : GO TO 3.

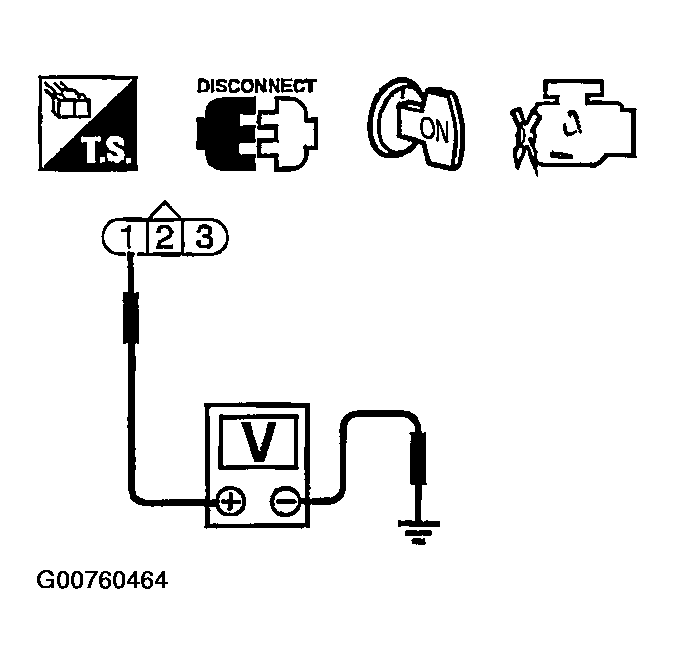

Fig 1: Checking voltage between PSP sensor terminal 1 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
