1. Check Throttle Control Motor Relay Power Supply

1. Turn ignition switch OFF
2. Disconnect throttle control motor relay harness connector.

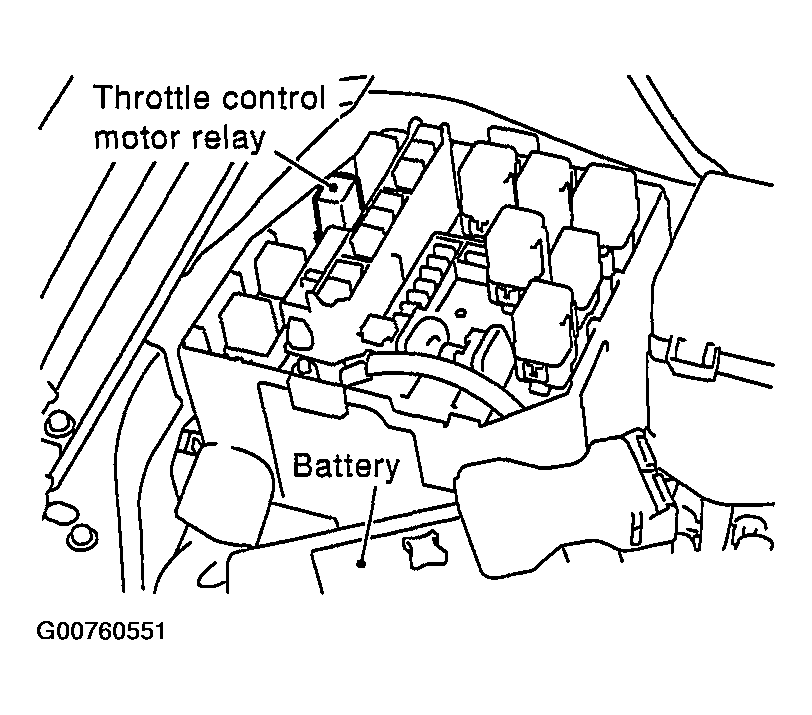

   Fig 1: Locating throttle control motor relay

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between throttle control motor relay terminals 2, 3 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

OK : GO TO 3.

NG : GO TO 2.

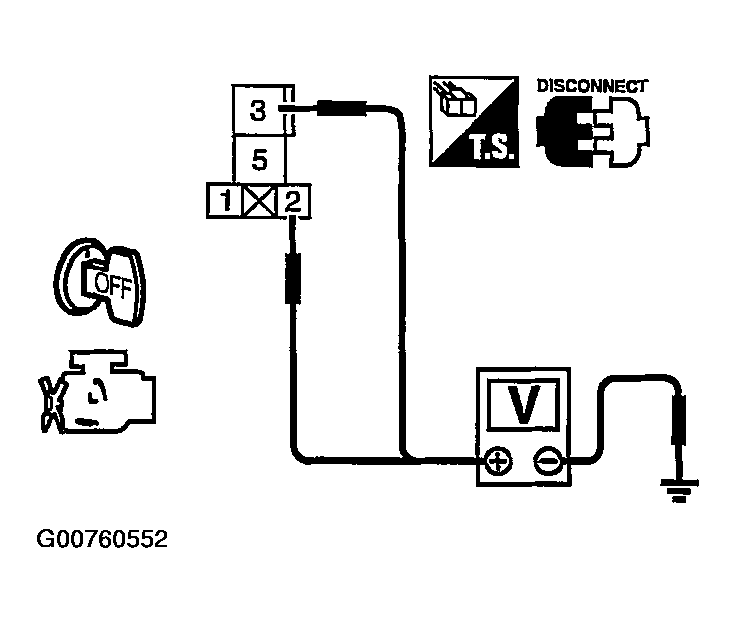

Fig 2: Checking voltage between throttle control motor relay terminals 2, 3 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
