2. Check PNP Switch Signal

With CONSULT-II

1. Turn ignition switch ON.
2. Select "A/T", then "DATA MONITOR" mode with CONSULT-II.
3. Select "P/N POSI SW" signal and check its indication under the following conditions.

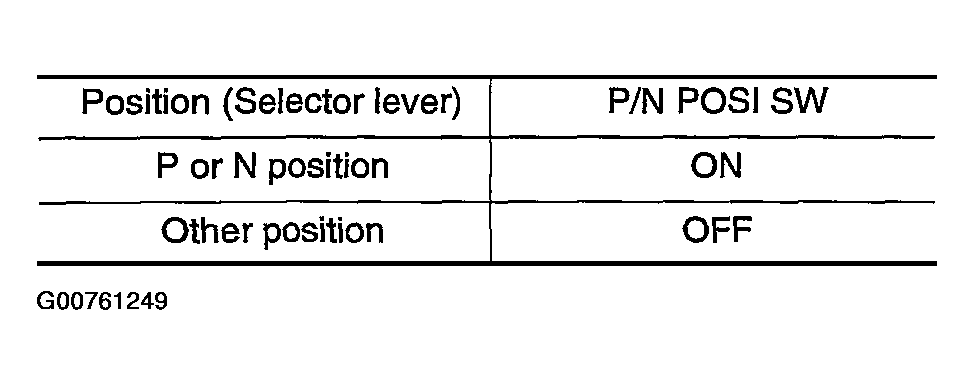

Fig 1: Checking PNP Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.

NG: GO TO 4.
