5. Check PNP Switch Input Signal Circuit For Open And Short-I

1. Turn ignition switch OFF.
2. Disconnect TCM harness connector.
3. Disconnect fuse block (J/B) No. 1 harness connector.
4. Check harness continuity between TCM terminal 48 and fuse block (J/B) No. 1 terminal 17D.

   Refer to Wiring Diagram.

   1. Continuity should exist.

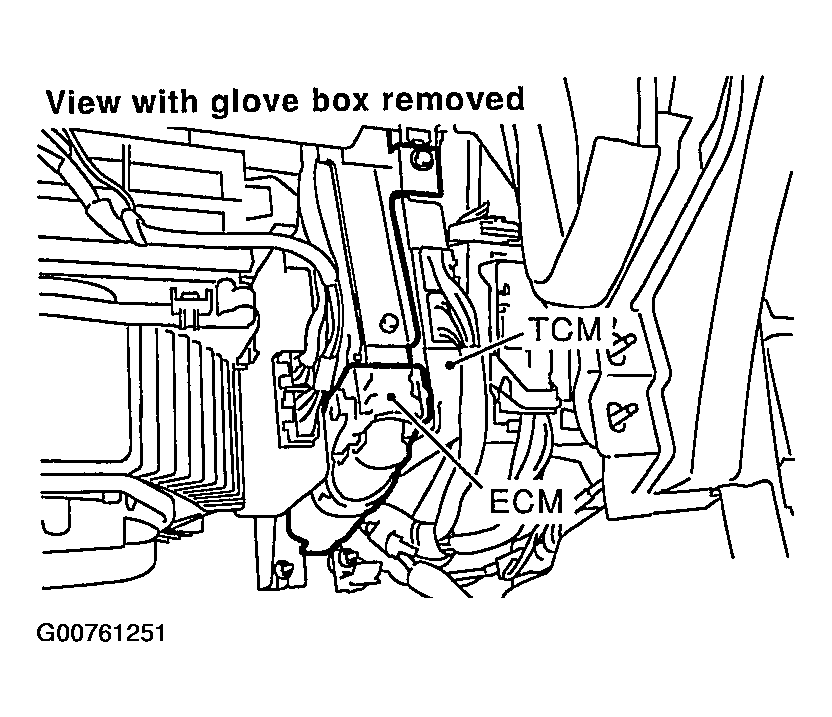

   Fig 1: Locating ECM & TCM

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO 7.

NG: GO TO 6.
