2. Check APP Sensor 1 Power Supply Circuit

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 7 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

OK or NG

OK: GO TO 3.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

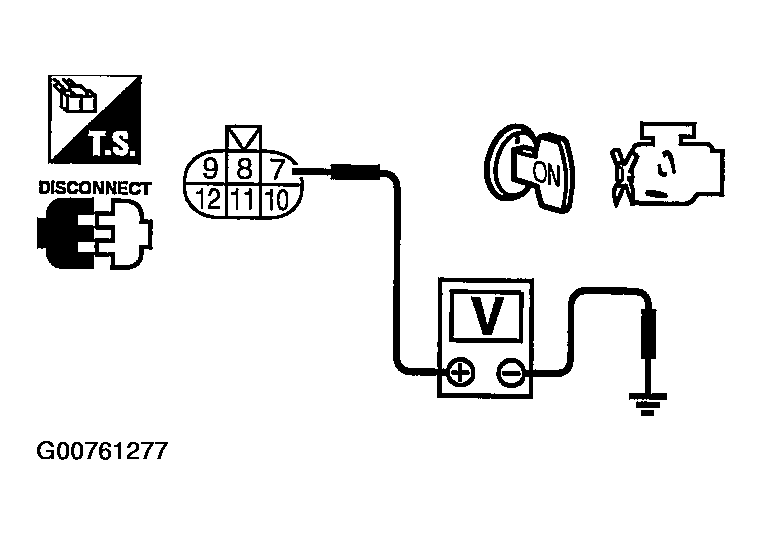

Fig 1: Checking voltage between electric throttle control actuator terminal 7 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
