4. Check Ignition Coil Power Supply Circuit-I

1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
2. Check voltage between ECM terminals 163, 166 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

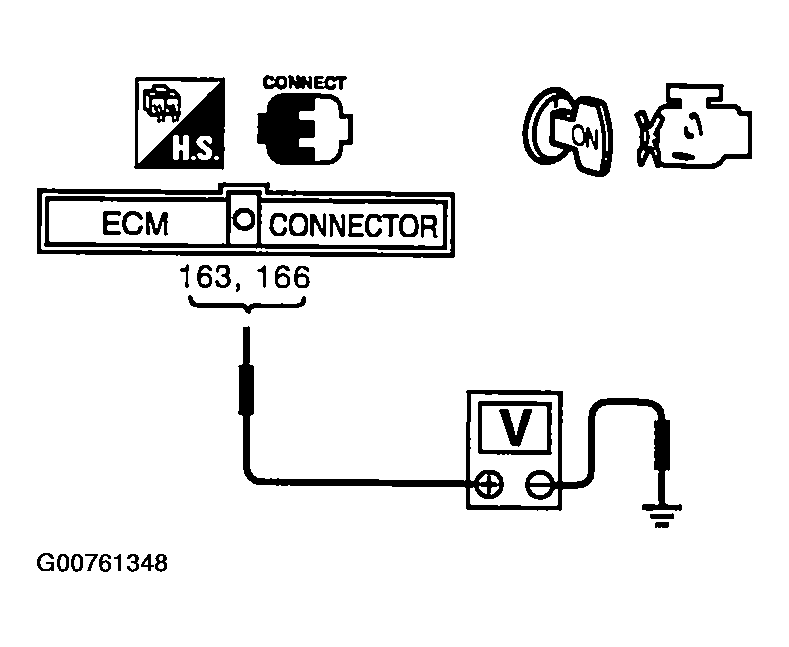

Fig 1: Checking voltage between ECM terminals 163, 166 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.

NG: Go to POWER SUPPLY AND GROUND CIRCUIT  .
