5. Check Ignition Coil Power Supply Circuit-II

Check voltage between ECM terminal 12 and ground with CONSULT-II or tester.

1. Voltage: Battery voltage

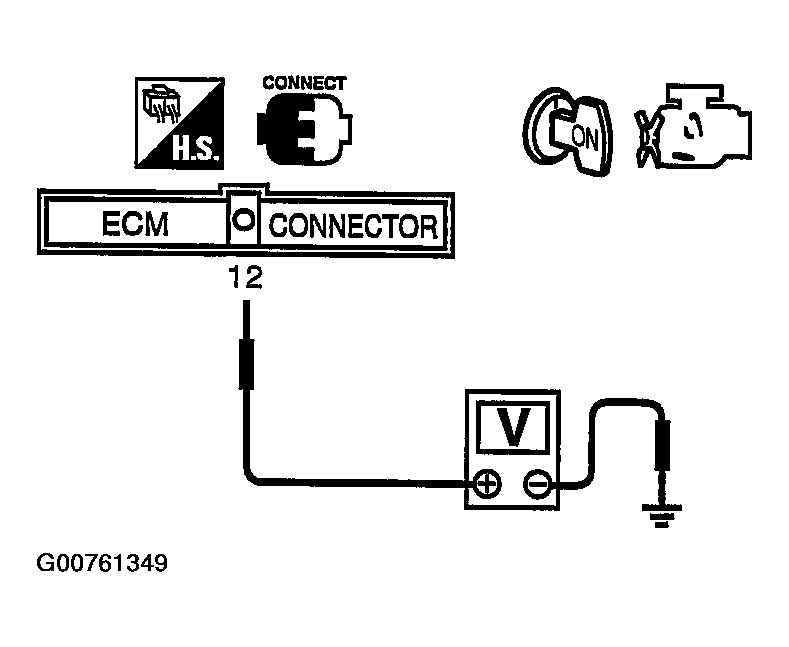

Fig 1: Checking voltage between ECM terminal 12 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 11.

NG: GO TO 6.
