ECM Relay

  1. Apply 12V direct current between ECM relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5, 6 and 7.

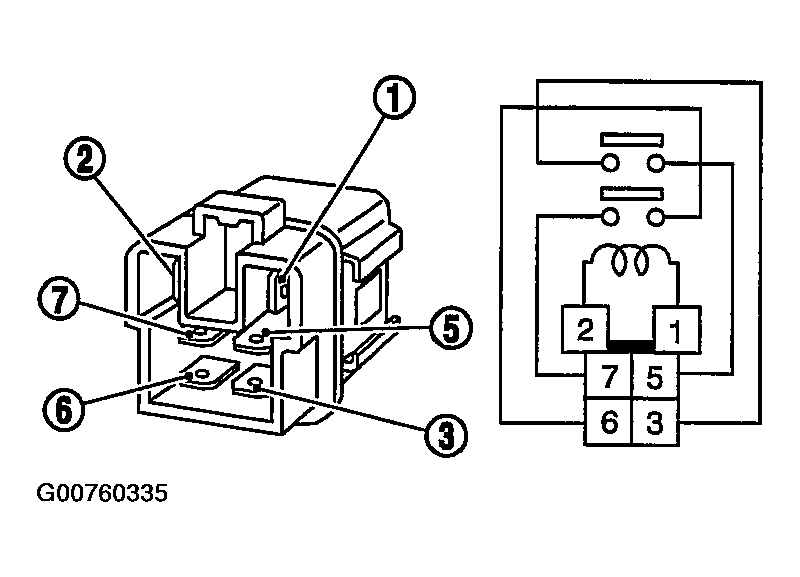

    Fig 1: Checking continuity between relay terminals 3 & 5, 6 & 7
    G00760335Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace ECM relay.

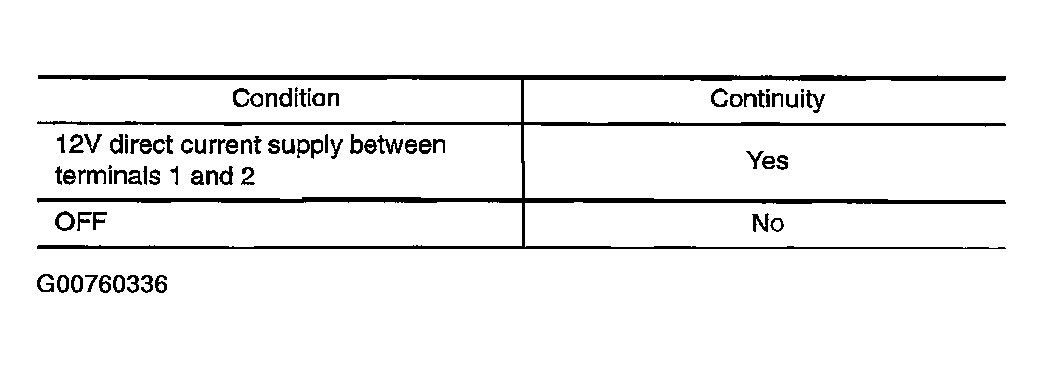

Fig 2: Checking ECM Relay
G00760336Courtesy of NISSAN MOTOR CO., U.S.A.
