3. Check Refrigerant Pressure Sensor Power Supply Circuit

1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

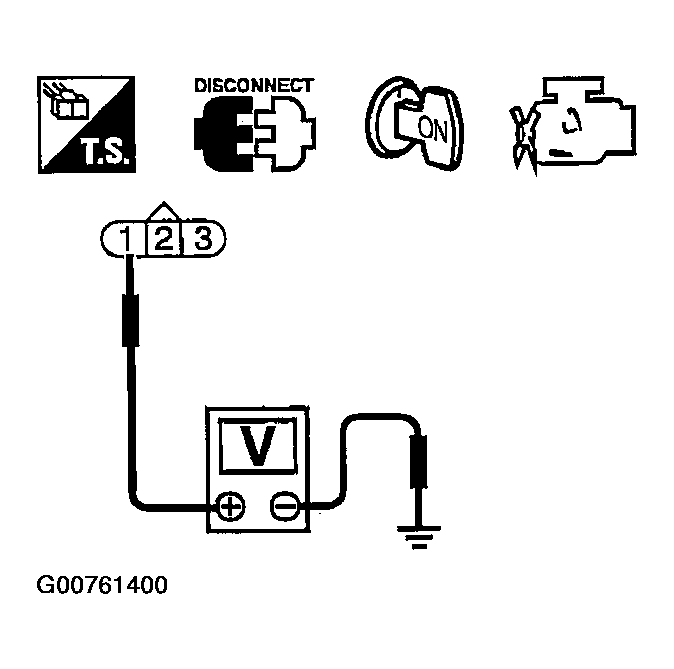

Fig 1: Checking Voltage Between Refrigerant Pressure Sensor Terminal 1 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5.

NG: GO TO 4.
