Tightening Torque

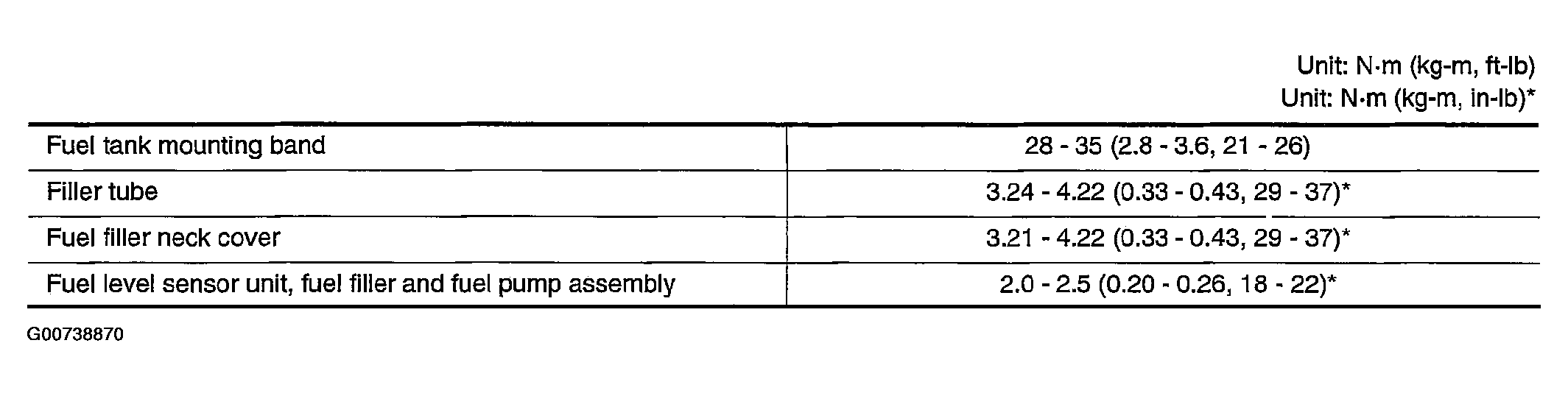

Fig 1: Displaying Torque Settings For Fuel System Parts
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
