Removal And Installation: Removal

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Remove the console box.
Disconnect the harness connector.
Remove the mounting bolts, and remove the Yaw rate and G-sensor.

CAUTION: Do not drop or strike the Yaw rate and G-sensor, because it has little endurance against impact.

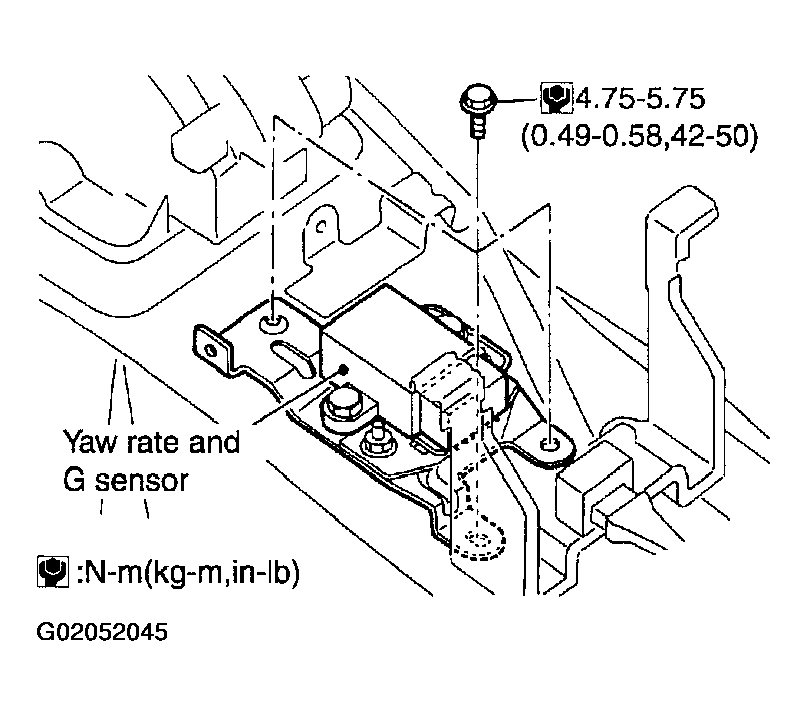

Fig 1: Identifying Yaw Rate & G-Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
