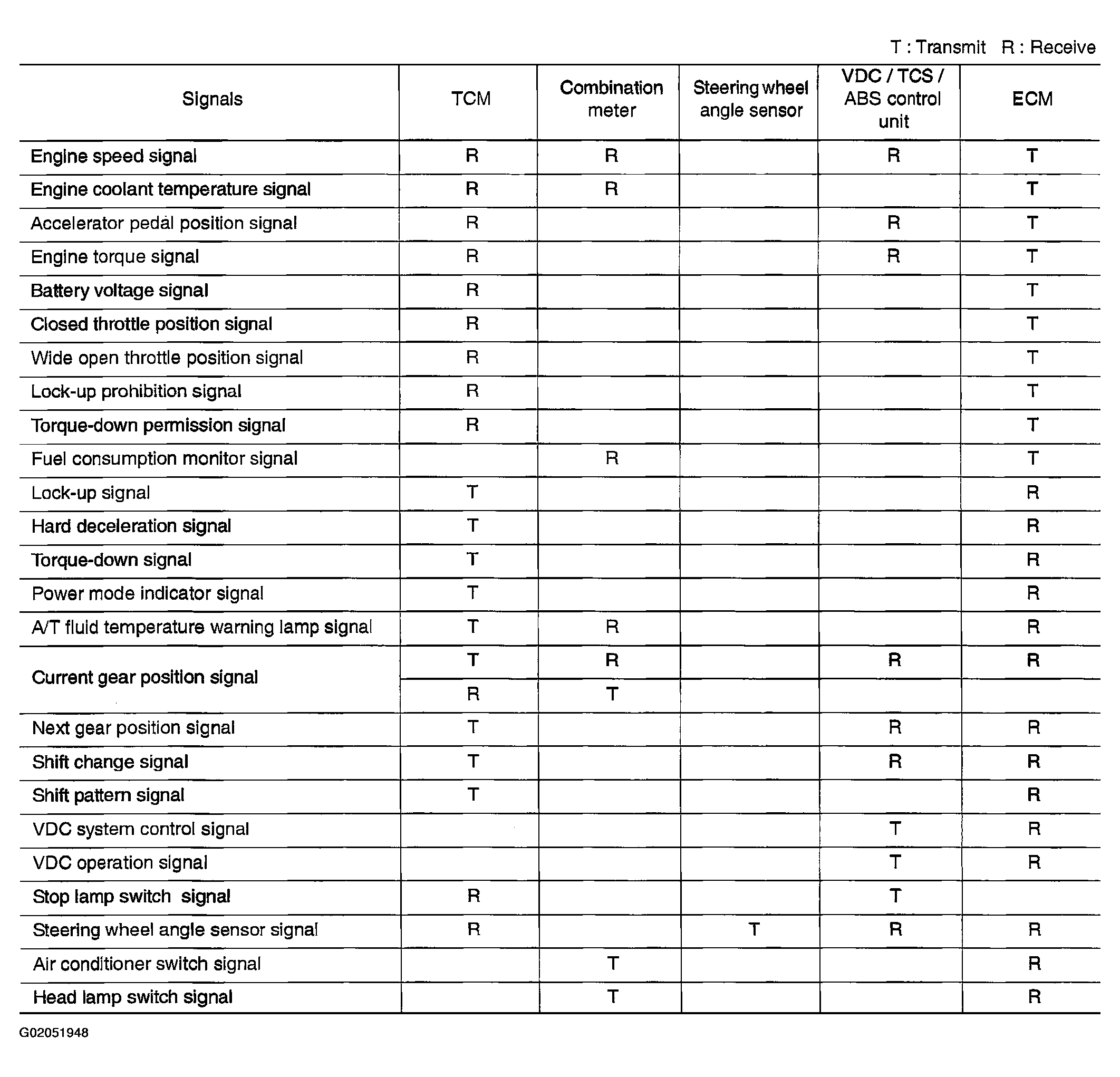

Fig 1: Displaying Input/Output Signal Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

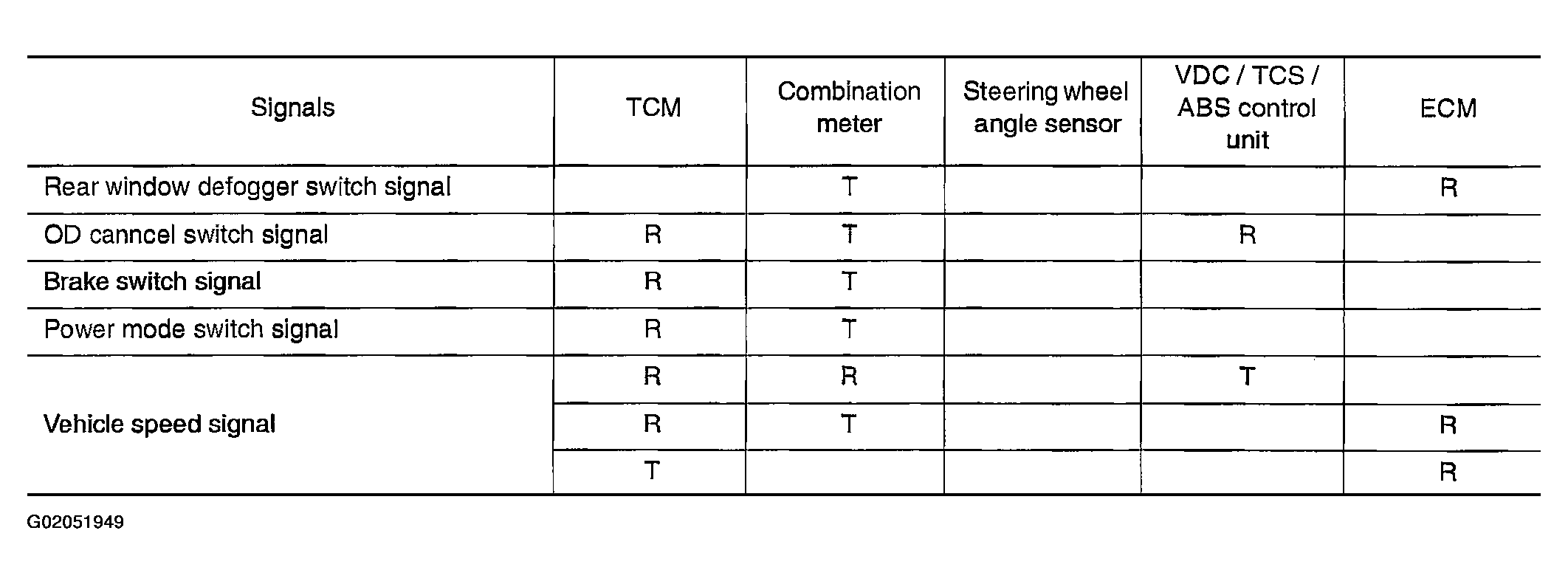

Fig 2: Displaying Input/Output Signal Chart (2 Of 2)
