System Diagram

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

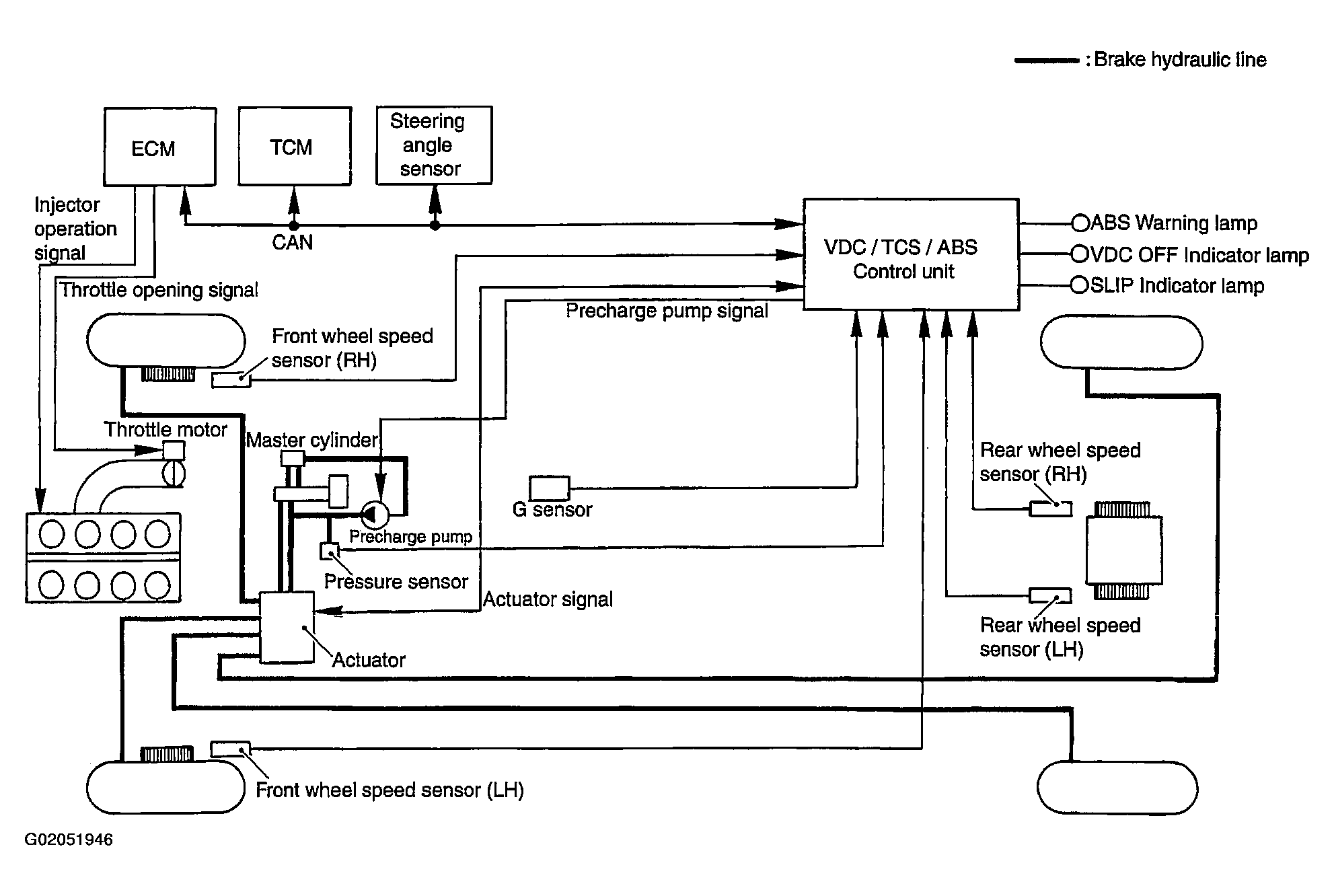

Fig 1: Displaying System Diagram
G02051946Courtesy of NISSAN MOTOR CO., U.S.A.
