CAN System

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in)]

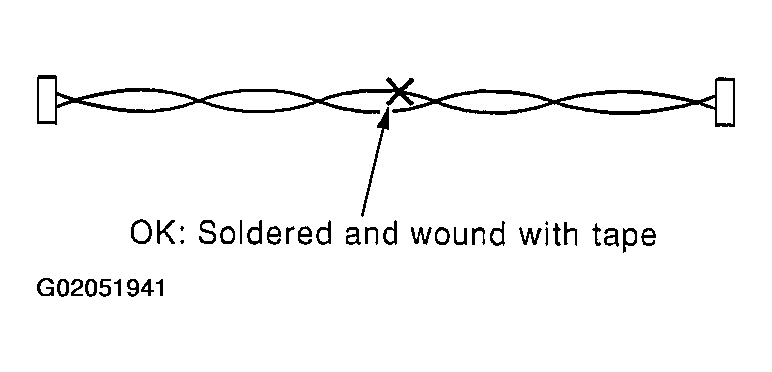

Fig 1: Displaying Soldered & Taped Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of twisted line will be lost.)

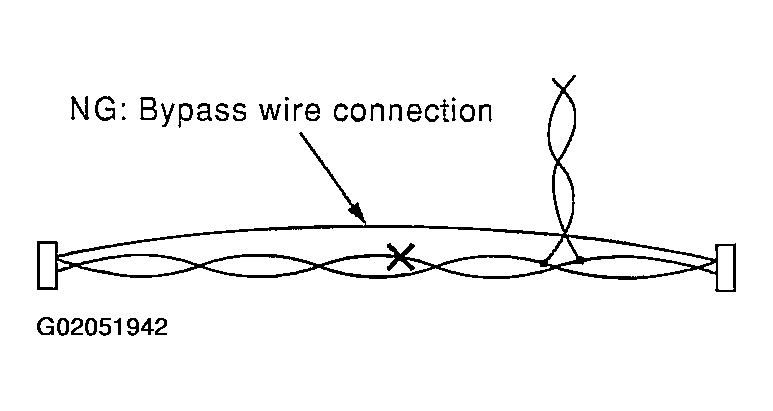

Fig 2: Displaying Bypass Wire Connection

Courtesy of NISSAN MOTOR CO., U.S.A.
