Disassembly And Assembly For Combination Meter

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

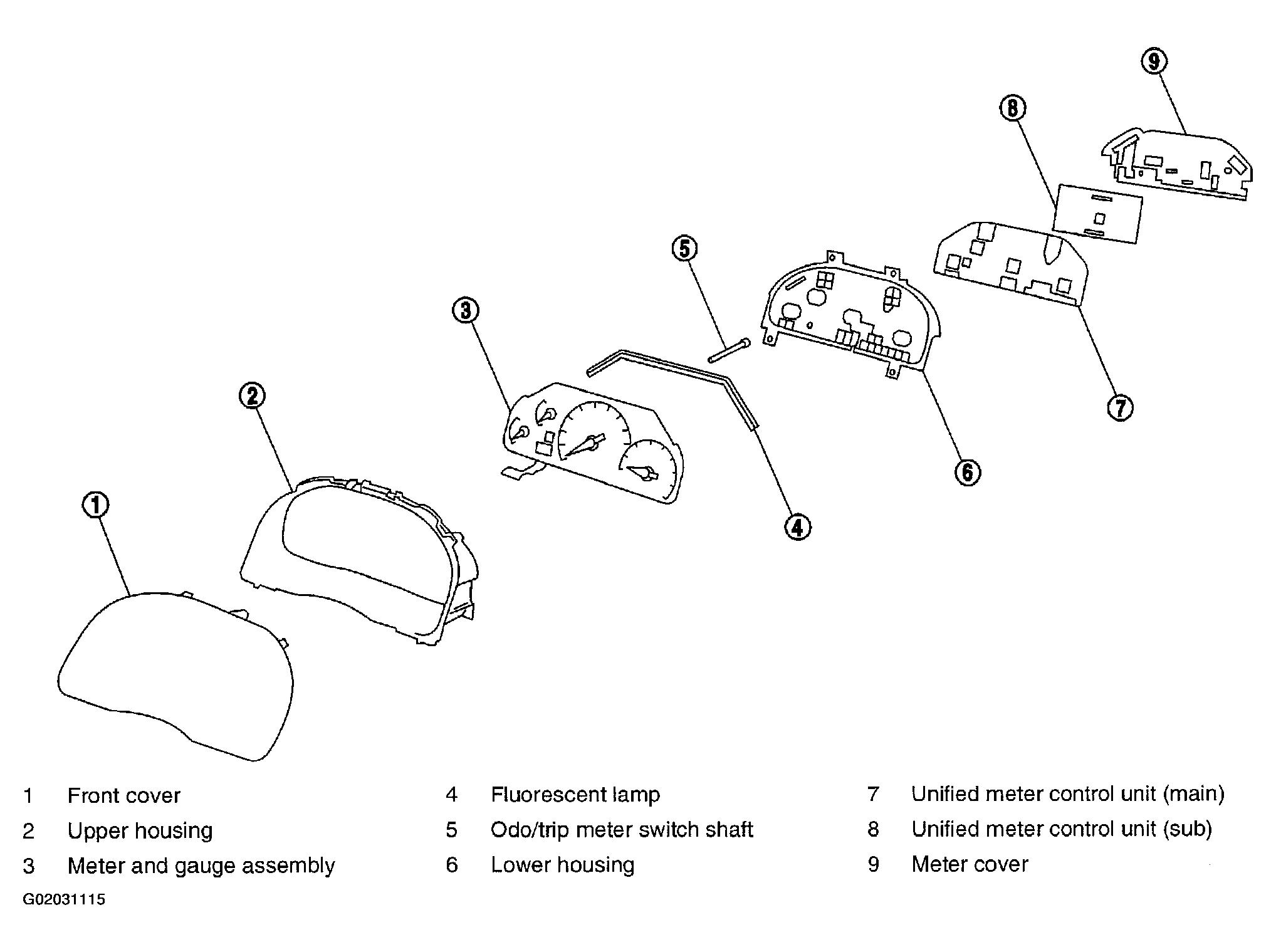

Fig 1: Exploded View Of Combination Meter
G02031115Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the screws (9) to separate meter cover.

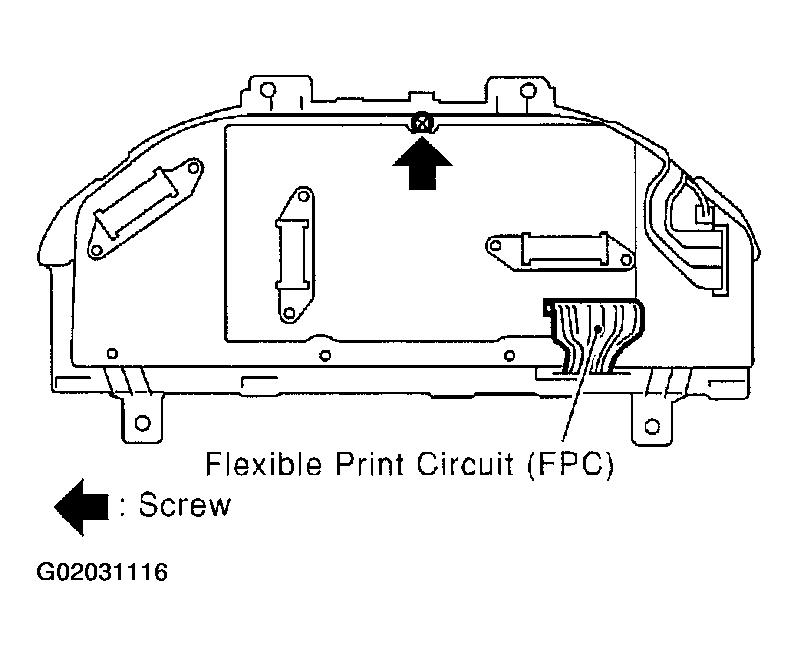

    Fig 2: View Of Flexible Printed Circuit Connector
    G02031116Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Separate the connectors for fluorescent lamp connector and flexible printed circuit for fluorescent lamp.
  3. Separate the flexible printed circuit for odometer/trip meter.
  4. Remove the screw (1) to separate unified meter control unit (main and sub).
  5. Disengage the tabs (8) to separate upper housing.
  6. Remove the screw (1) to separate meter and gauge assembly.
  7. Disengage the tabs (7) to separate front cover.
  8. Separate unified meter control unit (main) from unified meter control unit (sub).

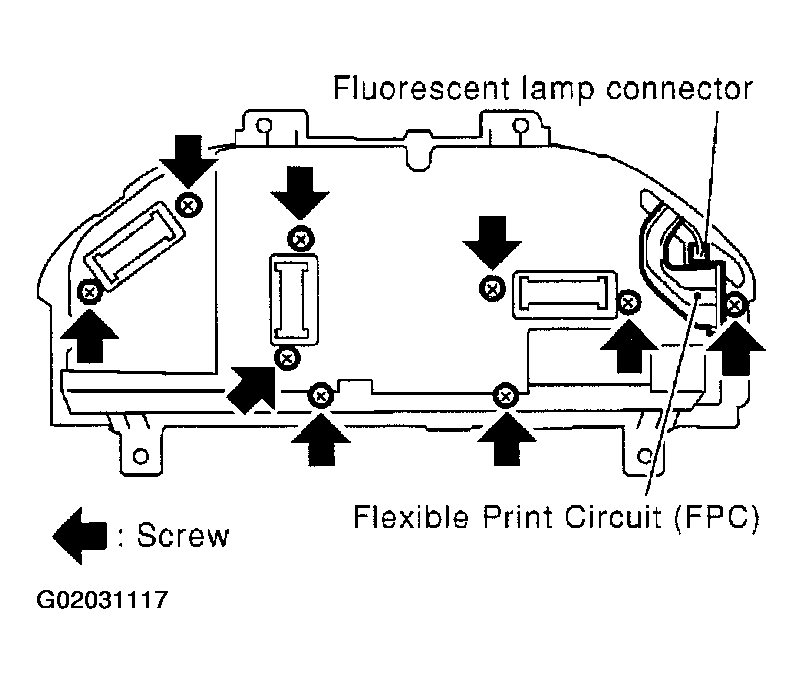

    Fig 3: Locating Screws
    G02031117Courtesy of NISSAN MOTOR CO., U.S.A.
