Fuel Level Sensor Unit Check

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

For removal, Refer to FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
Check the resistance between terminals 5 and 6.

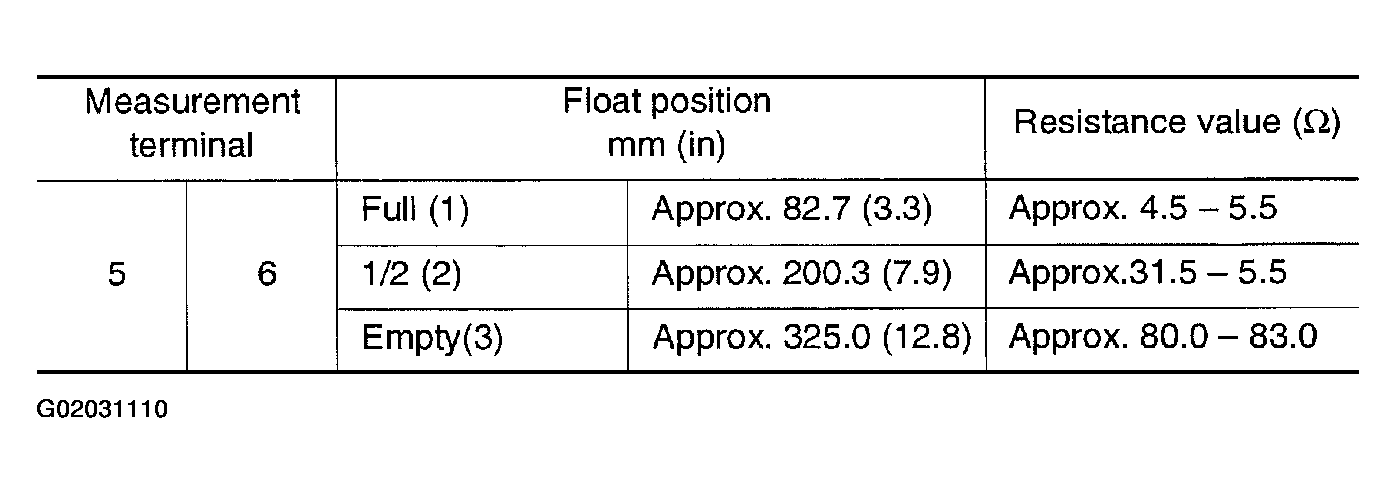

Fig 1: Fuel Level Sensor Unit Check (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

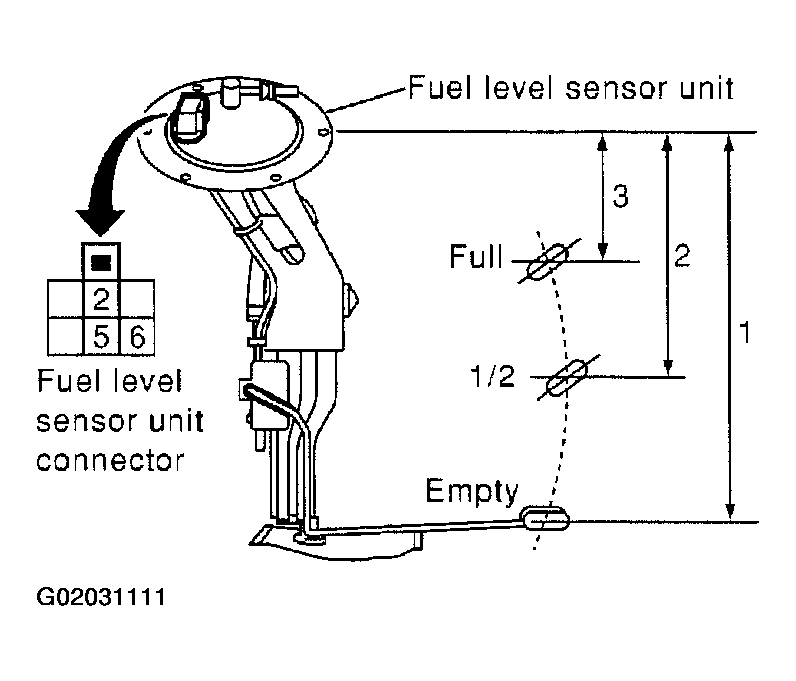

Fig 2: Fuel Level Sensor Unit Check (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
