Removal And Installation Of Rear View Camera Control Unit

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk trim.
  2. Remove the rear parcel shelf finisher.
  3. Remove the screws (2), and remove rear view camera control unit.

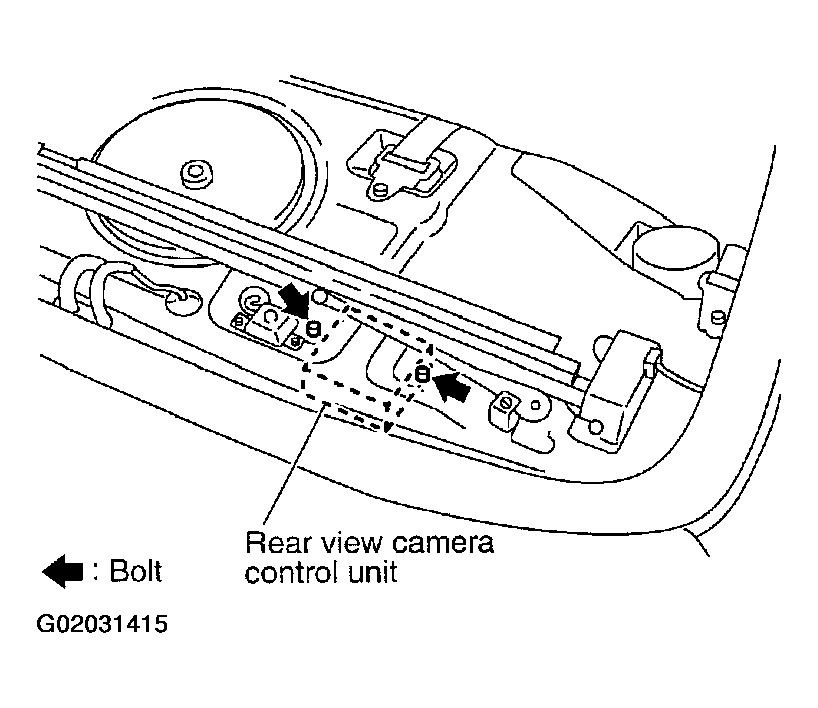

    Fig 1: Locating Rear View Camera Control Unit
    G02031415Courtesy of NISSAN MOTOR CO., U.S.A.
