CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the ignition switch OFF, connect CONSULT-II to the data link connector, and turn the ignition switch ON.

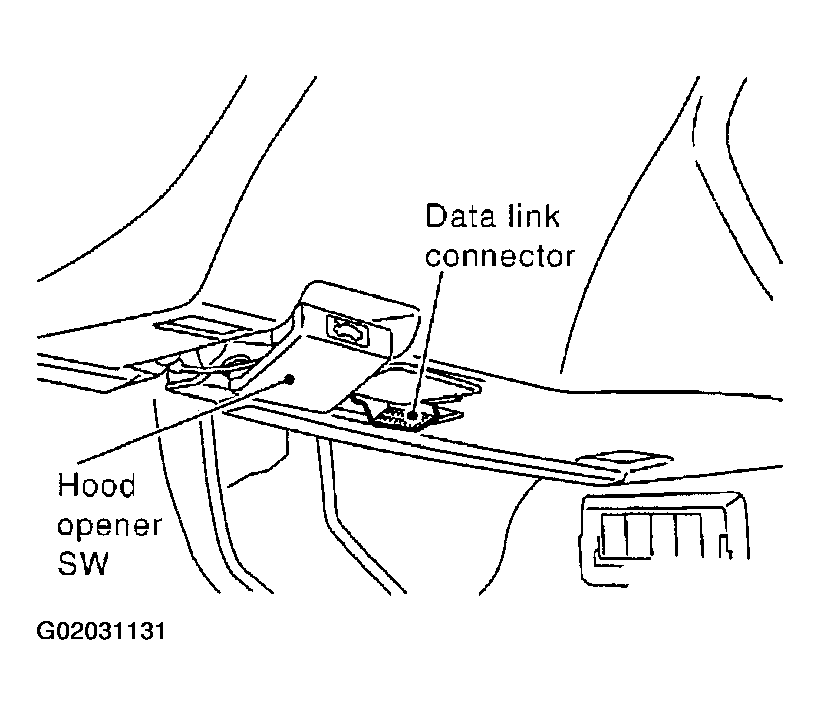

    Fig 1: Locating Data Link Connector
    G02031131Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START".
  3. Touch "IVMS".
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
