Vehicle Signals

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

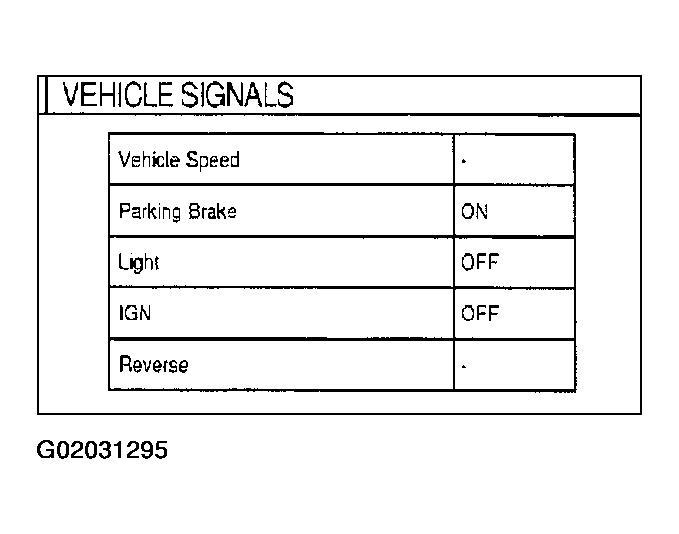

Fig 1: View Of Vehicle Signals Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

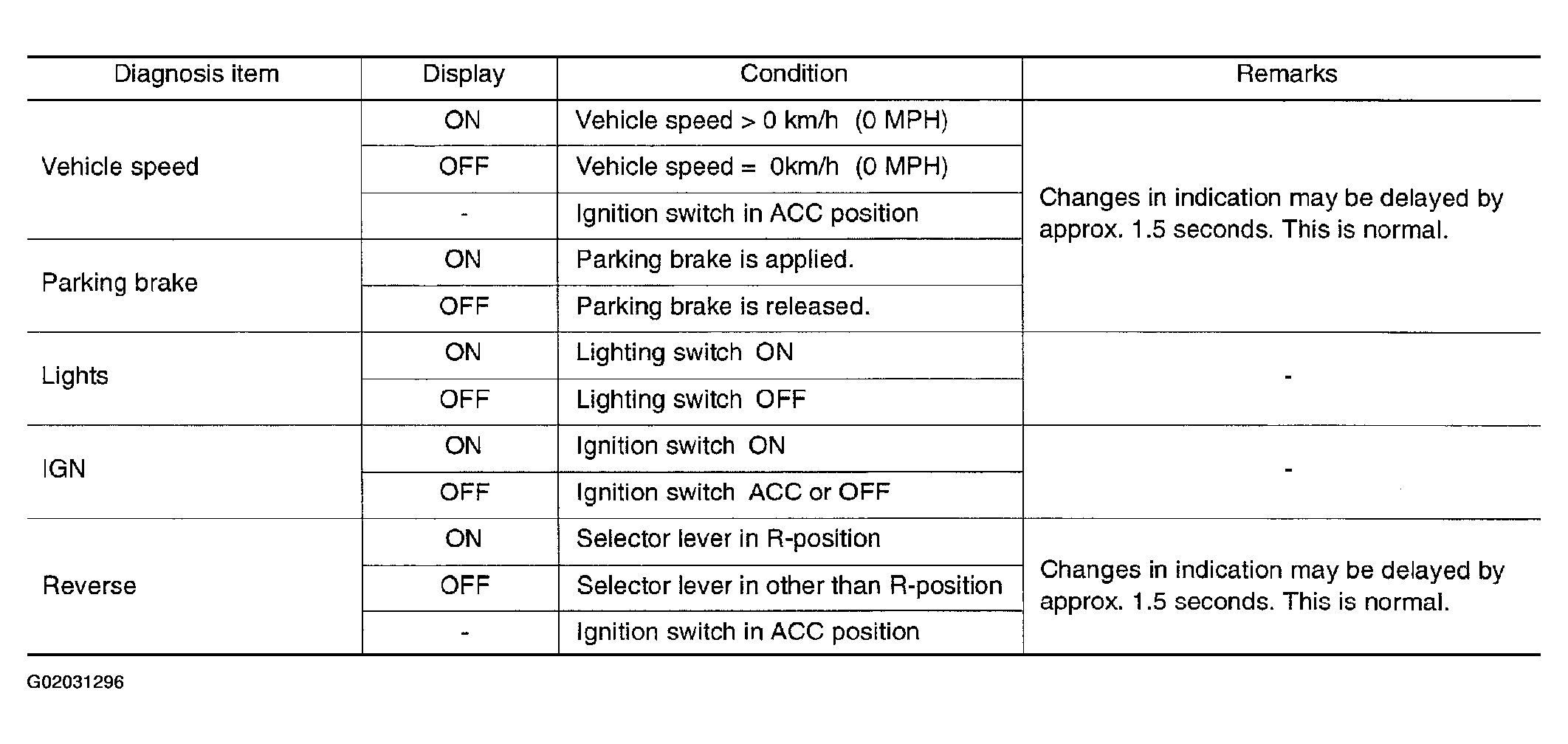

Fig 2: Vehicle Signals Table
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to VEHICLE SPEED SIGNAL CHECK .
If parking brake is NG, refer to PARKING BRAKE SIGNAL CHECK .
If light is NG, refer to ILLUMINATION CONTROL SIGNAL CHECK .
If IGN is NG, refer to IGNITION SIGNAL CHECK .
If reverse is NG, refer to Reverse Signal Check
