Display Diagnosis
WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

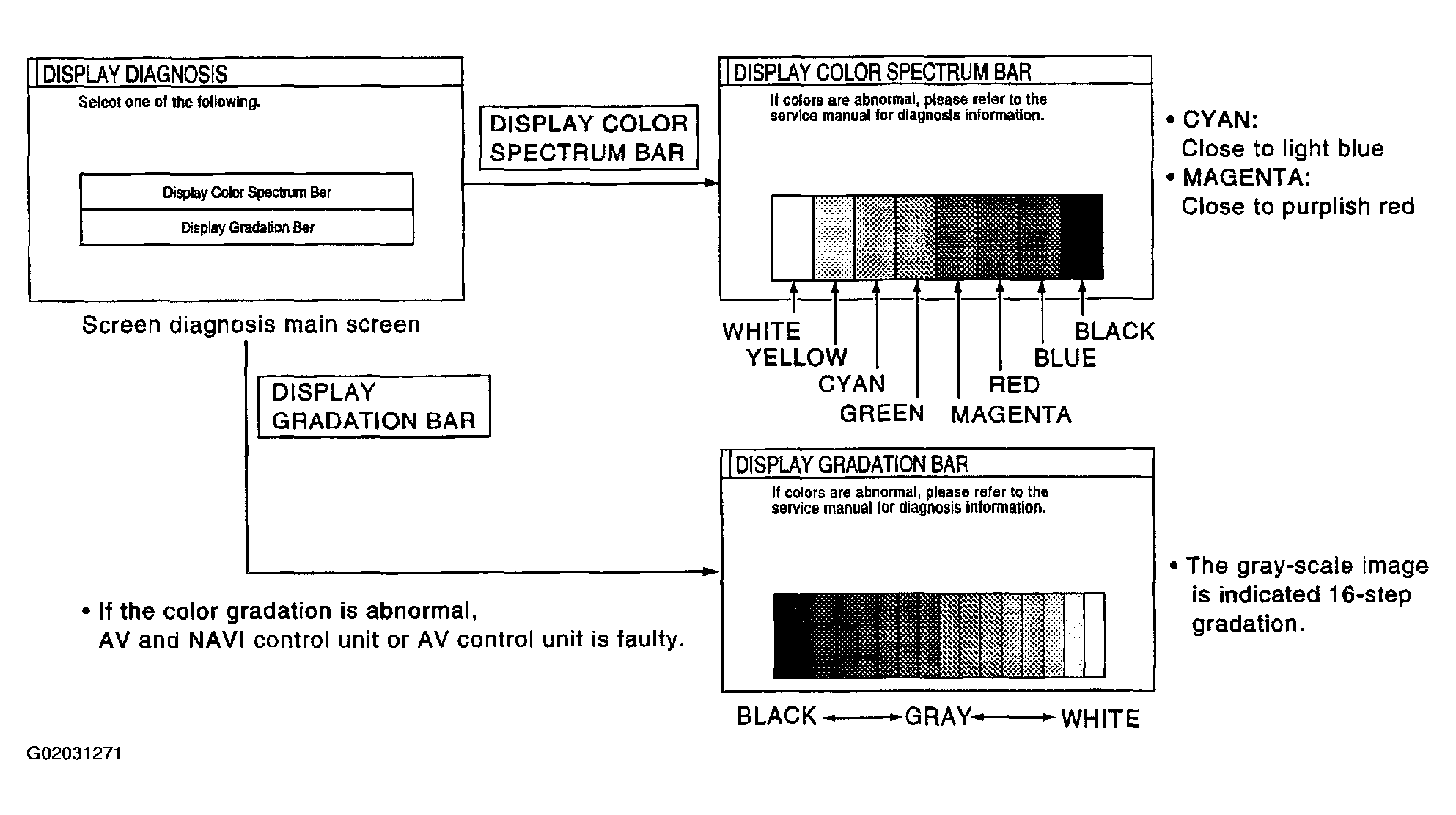

When Display Color Spectrum Bar screen is completed after "PREV" switch is pressed, the screen color changes once. This is not abnormal.
- When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
- R (red) signal error : Screen looks bluish
- G (green) signal error : Screen looks yellowish
- B (blue) signal error : Screen looks reddish
- When the color of the screen looks unusual, refer to Color of RGB Image Is Not Proper .
