Data Monitor

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Displays status of the vehicle signal input to the AV and NAVI control unit. (Refer to CONFIRMATION/ADJUSTMENT MODE (WITHOUT NAVIGATION SYSTEM) for operation conditions for the connections to be indicated.)
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

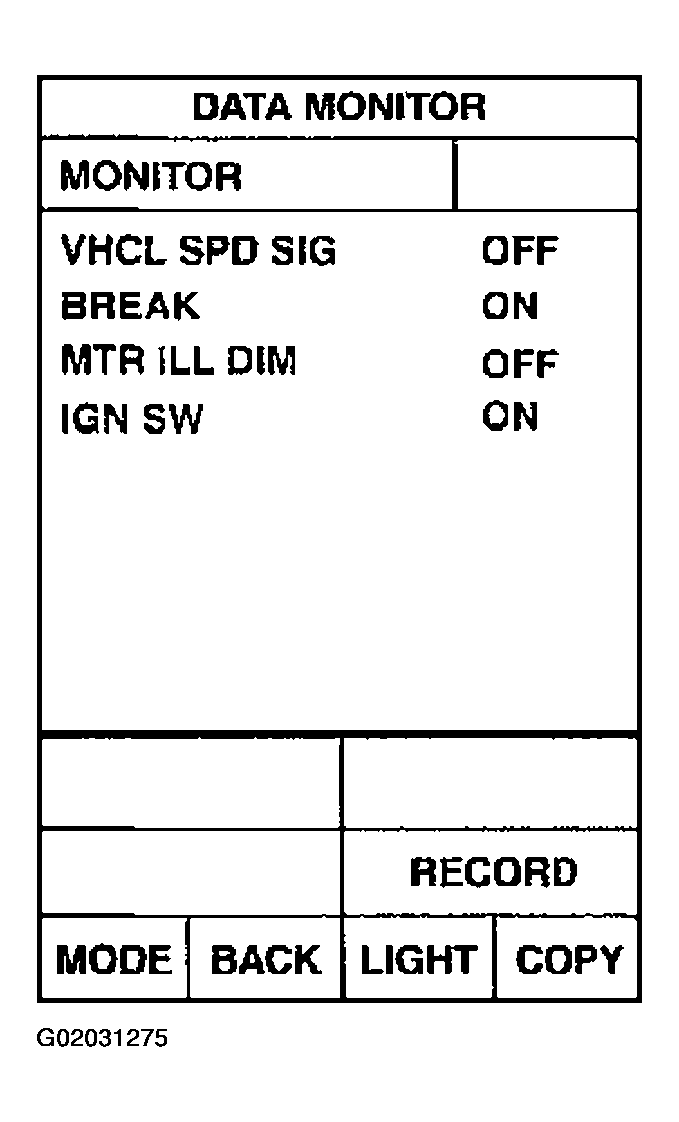

Fig 1: View Of Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

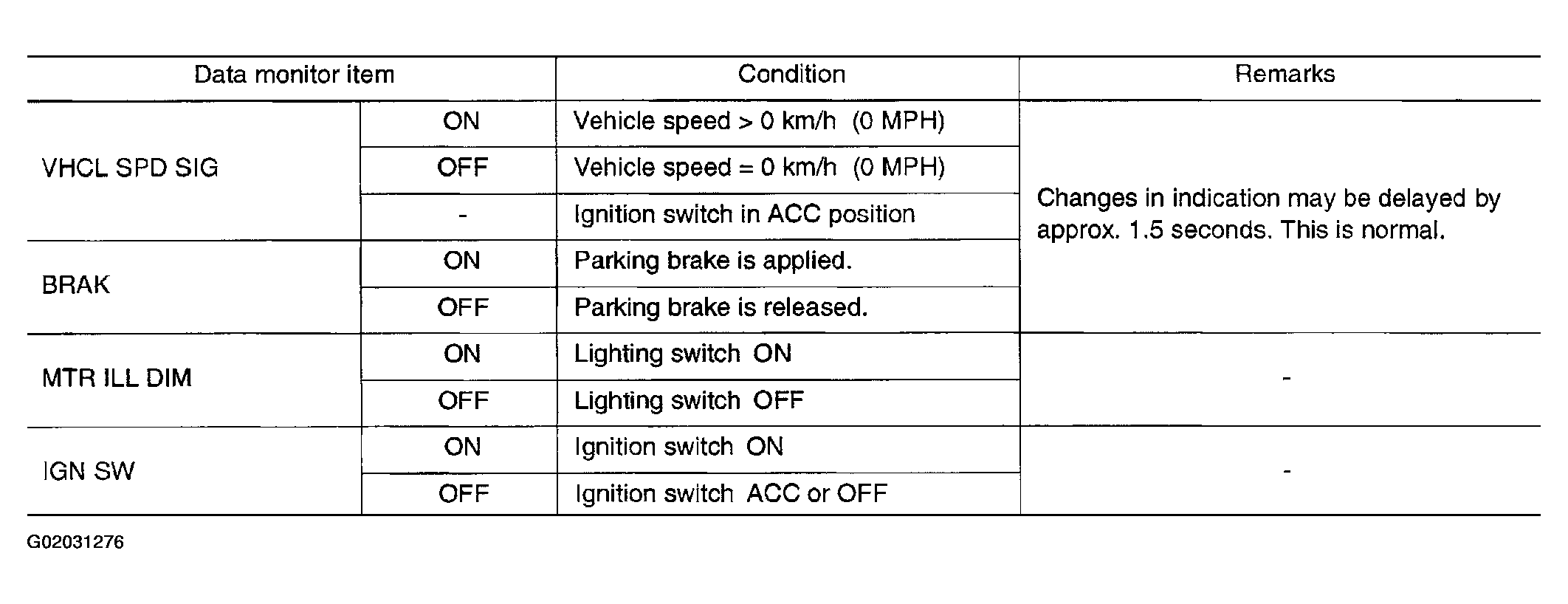

Fig 2: Data Monitor Item
Courtesy of NISSAN MOTOR CO., U.S.A.
