Disassembly And Assembly For MULTIFUNCTION Switch

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

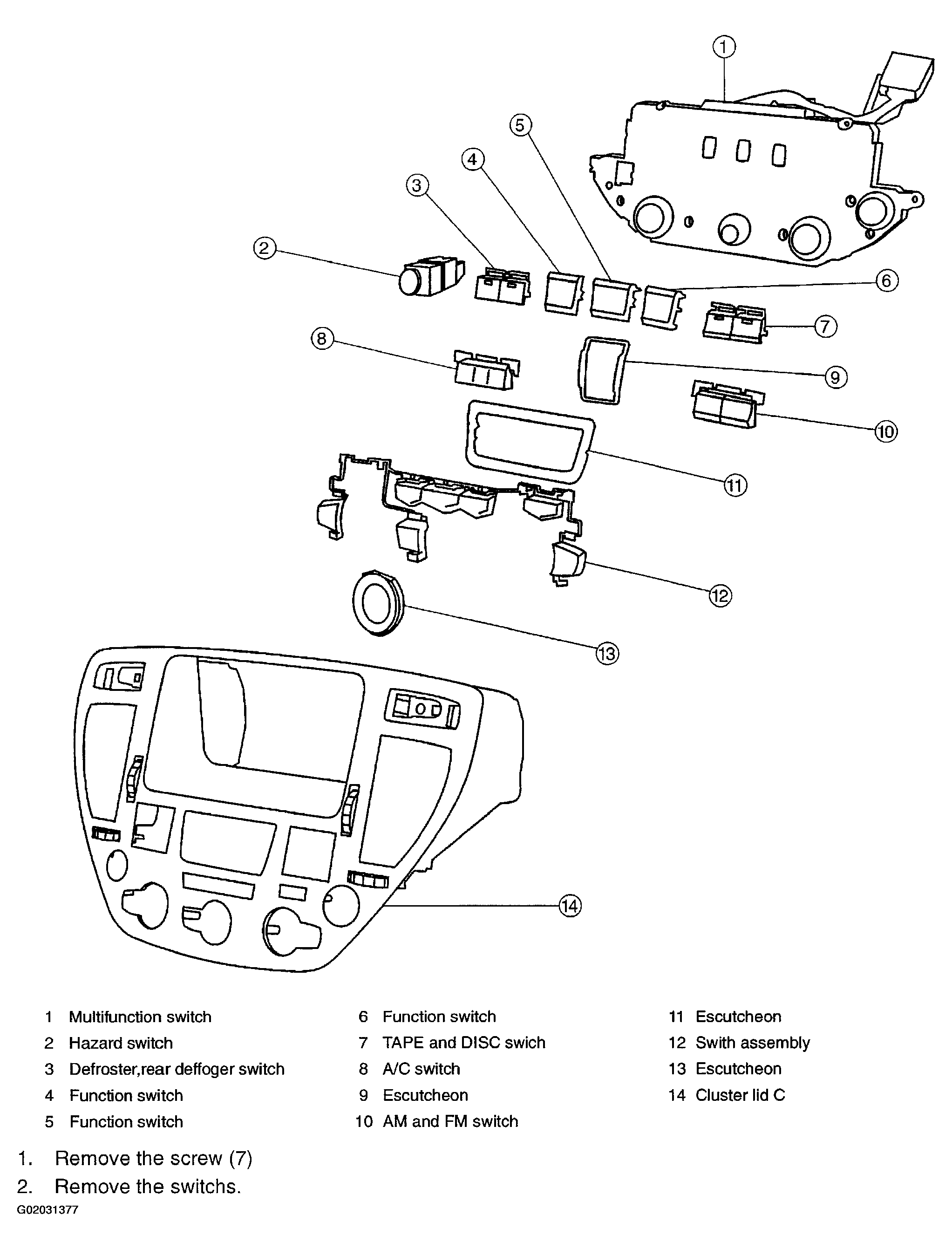

Fig 1: Disassembly & Assembly For Multifunction Switch
G02031377Courtesy of NISSAN MOTOR CO., U.S.A.
