Quick Reference Table

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Select an applicable diagnosis No. in the diagnosis result quick reference table.
Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to the AV communication line circuit diagram.
Turn the ignition switch to OFF and perform self-diagnosis again.

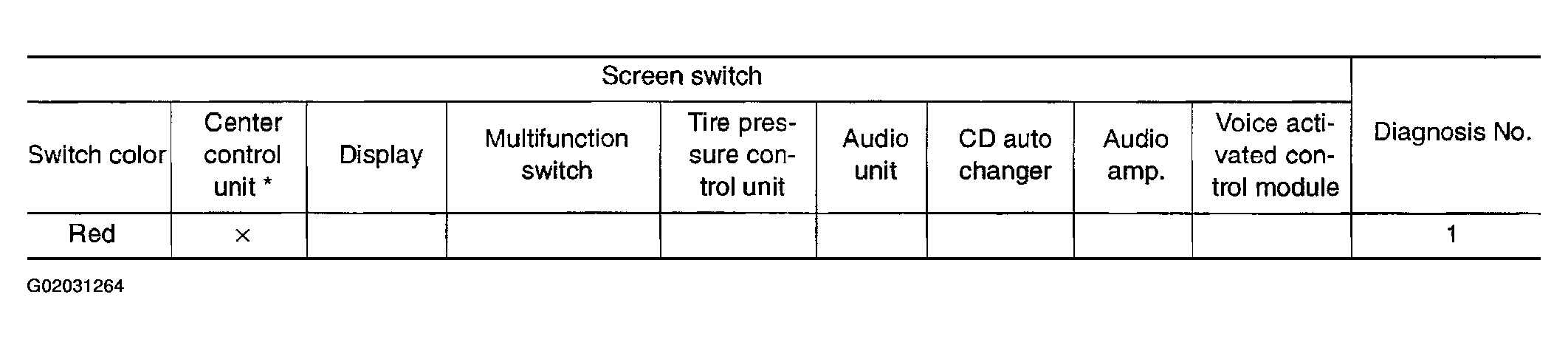

Fig 1: Quick Reference Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

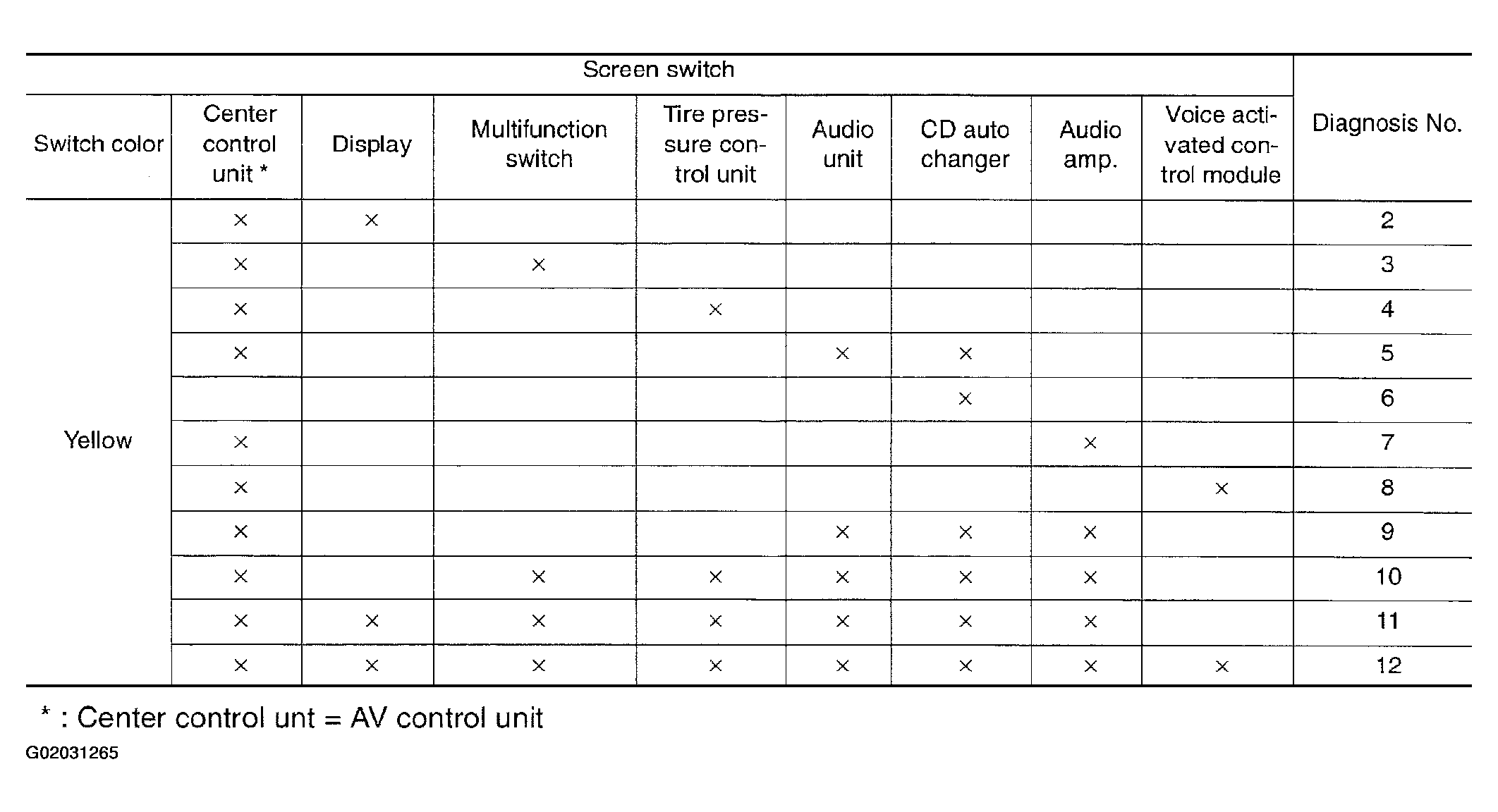

Fig 2: Quick Reference Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When an error is in the AV communication line, it cannot be detected on the screen because self-diagnosis is inoperative. However, the error can be detected with CONSULT-II.
