Vehicle Information System: Notes

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

AV and NAVI control unit (with navigation system) or AV control unit (without navigation system) is communicating with BCM and combination meter.

Setting of electric system can be changed by multifunction switch. The signal is sent to BCM through AV and NAVI control unit or AV control unit to change vehicle electric system setting.

Press "INFO" switch to display vehicle information display.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire pressure".

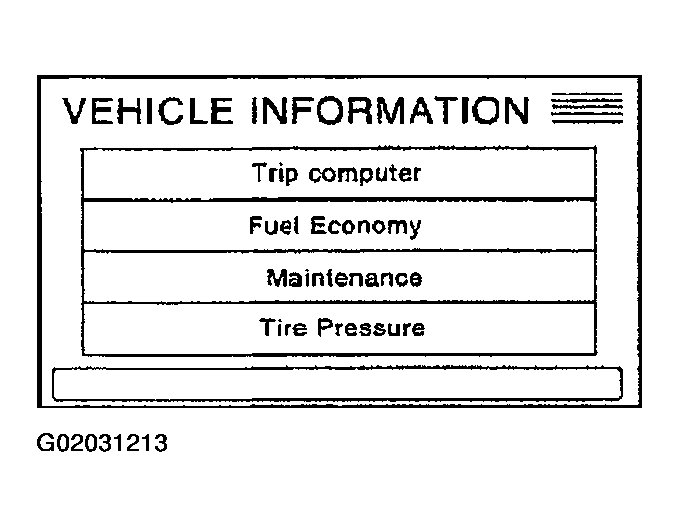

Fig 1: View Of Vehicle Information System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

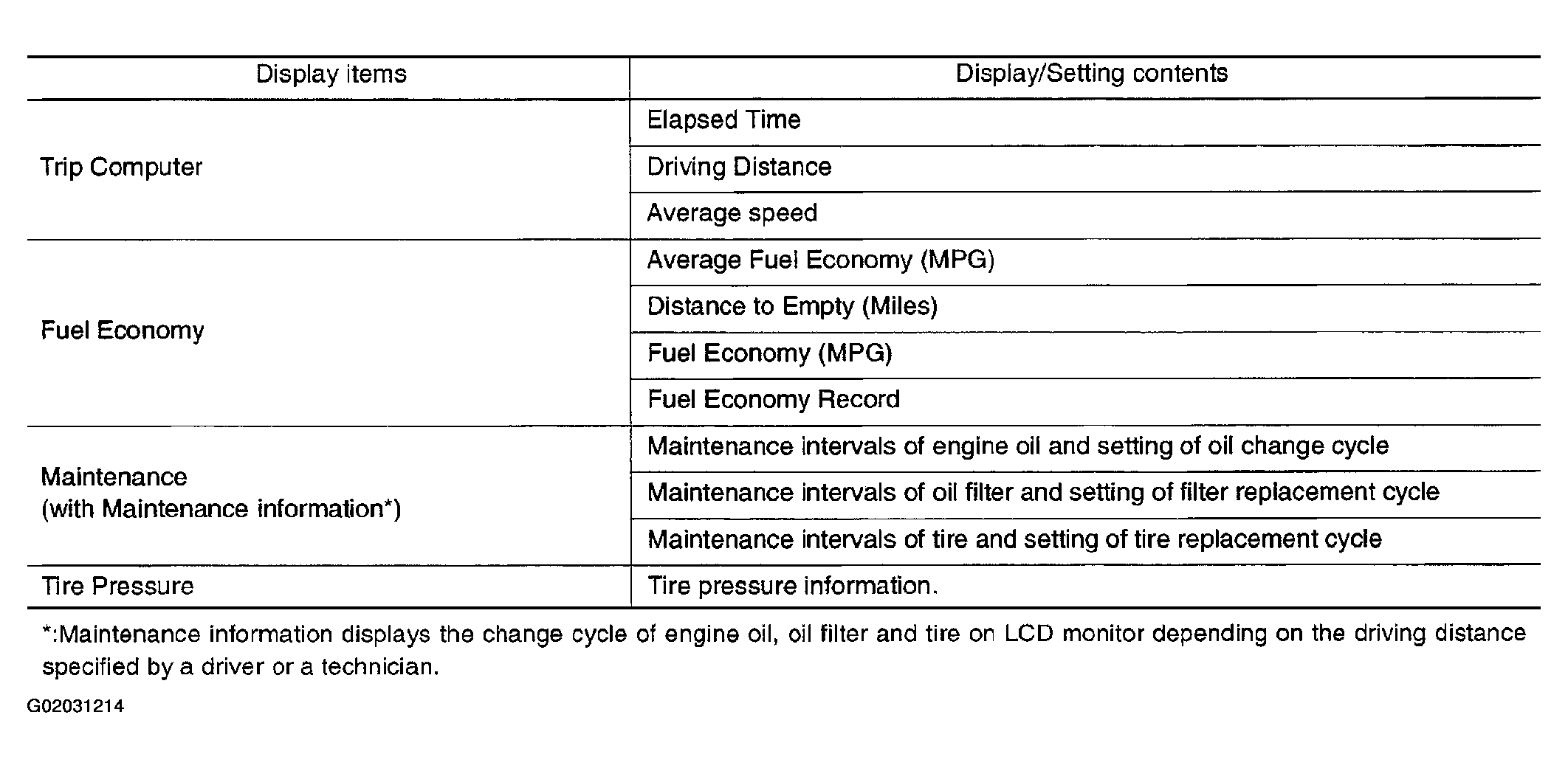

Fig 2: Display Items
Courtesy of NISSAN MOTOR CO., U.S.A.
