WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

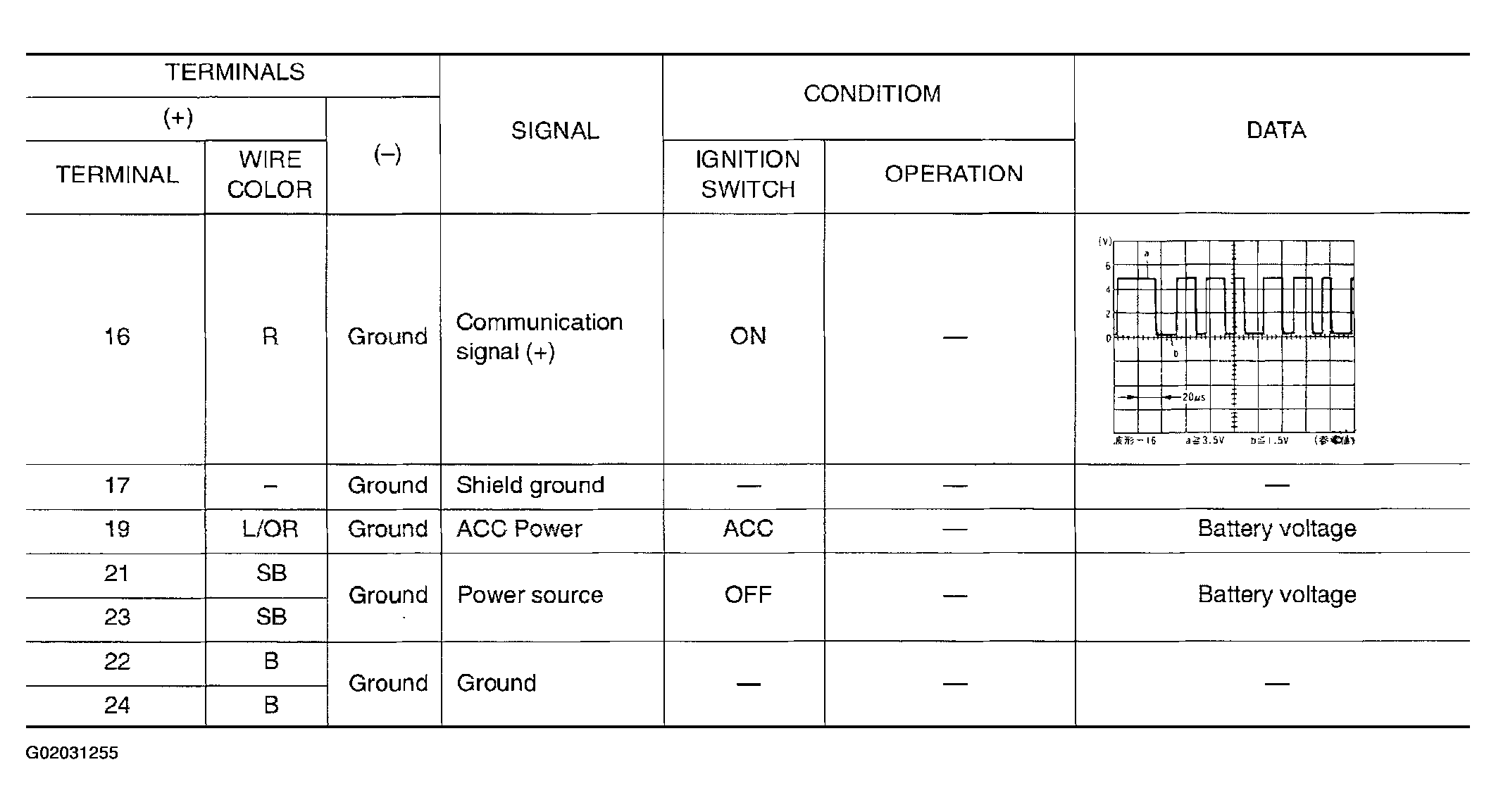

Fig 1: Terminals & Reference Value For Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Terminals & Reference Value For Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Terminals & Reference Value For Display (3 Of 3)
