Terminals And Reference Value For MULTIFUNCTION Switch

WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

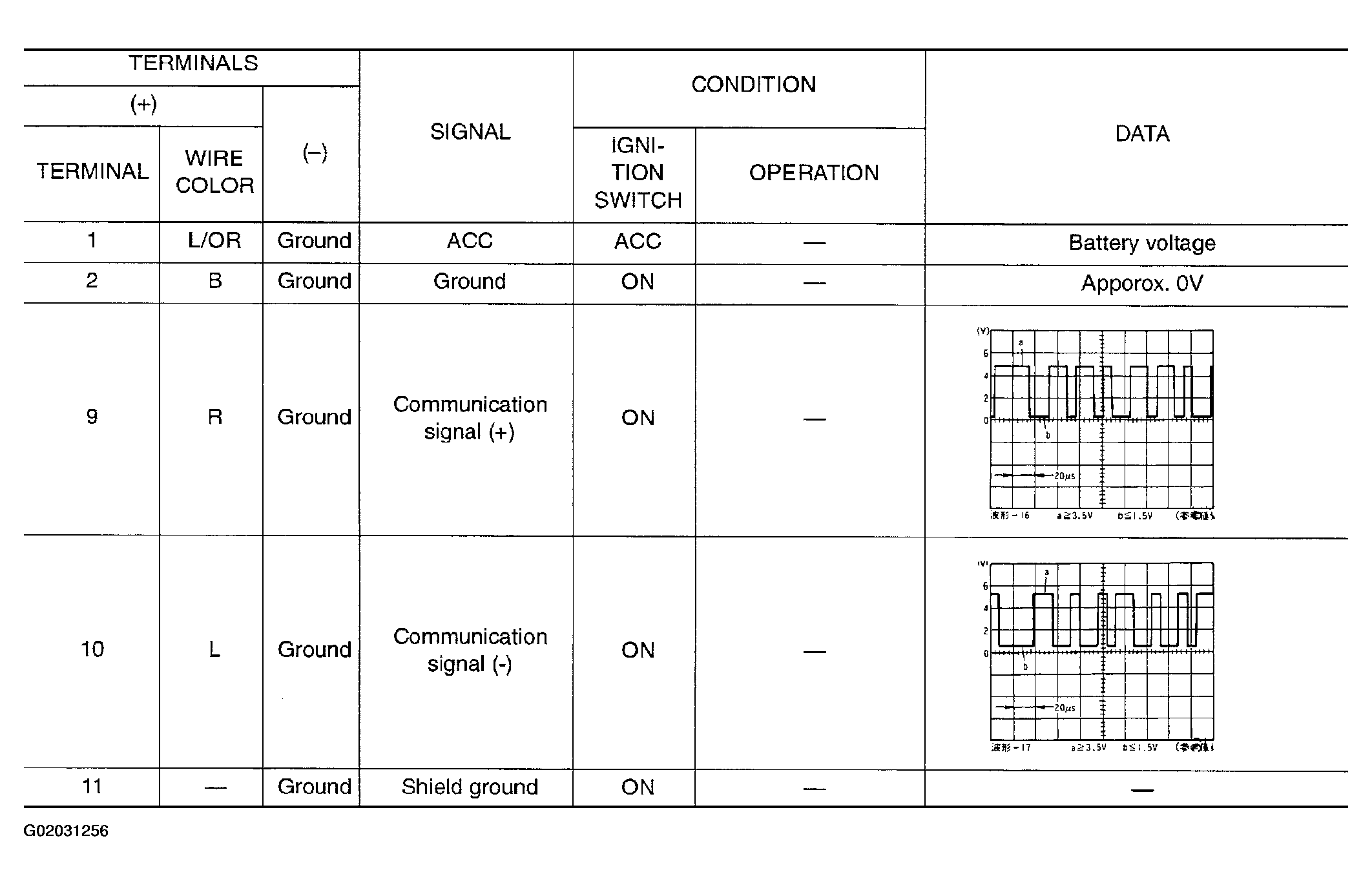

Fig 1: Terminals & Reference Value for Multifunction Switch
G02031256Courtesy of NISSAN MOTOR CO., U.S.A.
