System Description: Outline
WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

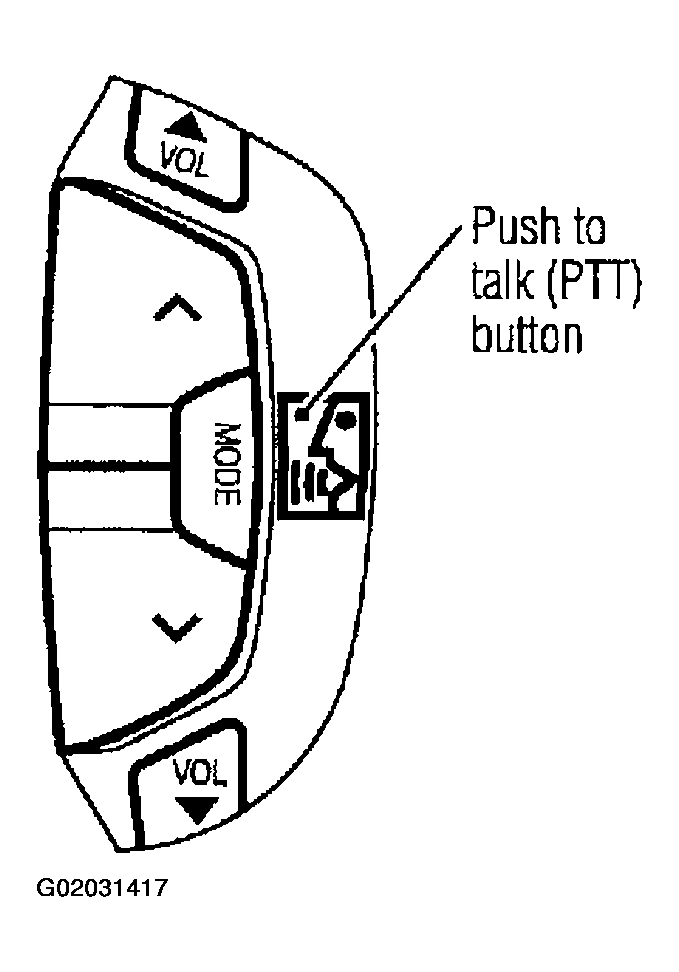

- The VACS (Voice-Activated Control System) provides a safe and convenient way of controlling vehicle systems such as the audio, auto A/C and navigation (if so equipped). The system is controlled by the PTT (Push to talk) button. Voice commands are picked up by a microphone. When giving a command, voice feedback will be heard through the speaker, and messages will be shown on the display. Voice feedback can be turned off. Personal directories of name tags for radio station presets can be created, and spoken command help is provided.
- Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times.
- through 15A fuse (No. 52, located in fuse, fusible link and relay block).
- to Voice Activated Control Module terminal 13.
With the ignition switch in the ACC or ON position, power is supplied.
- through 10A fuse [No. 21, located in the fuse block (J/B) No. 1].
- to Voice Activated Control Module terminal 20.
Ground is also supplied
- to Voice Activated Control Module terminal 14
- through body grounds B57 and B17.
