System Description: Function
WARNING: This page is about a different car, the 2002 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
Power is supplied at all times
- through 10A fuse [No. 3, located in the fuse block (J/B) No. 1]
- to BCM terminal 105.
- through 10A fuse [No. 8, located in the fuse block (J/B) No. 1]
- to key switch terminal 3.
- through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]
- to warning chime terminal 1, and
- through warning chime terminal 3
- to BCM terminal 12
- through 15A fuse [No. 54, located in the fuse, fusible link and relay block (J/B)]
- to tail lamp relay terminal 2 and 6 [located in fuse, fusible link and relay block (J/B)].
With ignition switch in ON or START position, power is supplied
- through 10A fuse [No. 1, located in the fuse block (J/B) No. 1]
- to BCM terminal 68.
Ground is supplied
- to BCM terminal 56 and 113
- through body grounds M24 and M114.

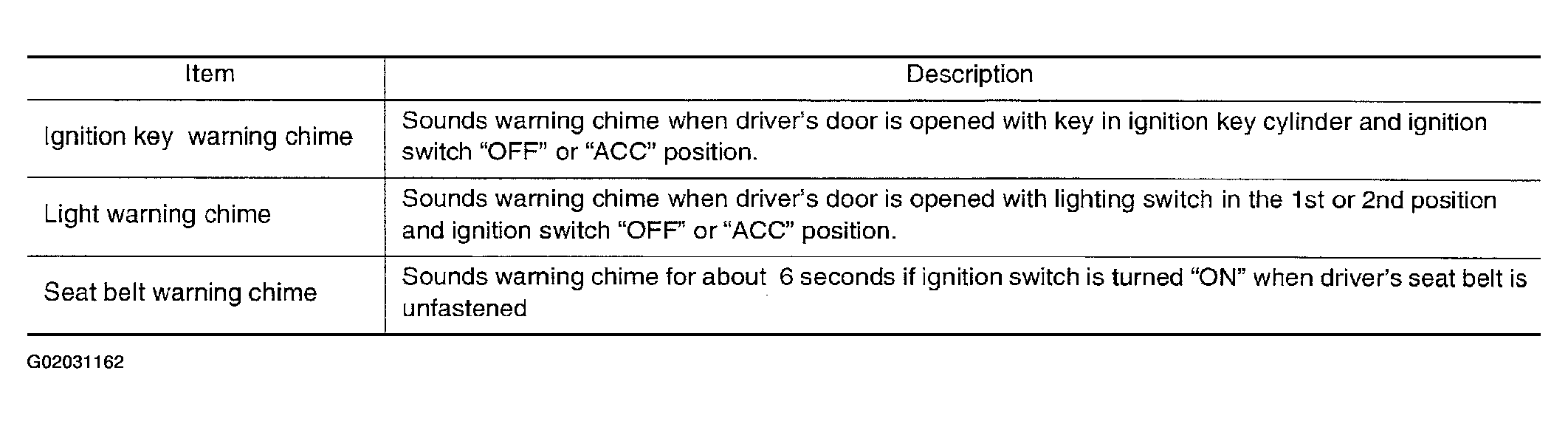

When a signal, or combination of signals, is received by the BCM, the warning chime will sound.
