System Description

The power steering system is a twin orifice type, which uses a vehicle-speed sensing, electronic control design. Solenoid valve sensitivity is controlled in response to vehicle speed to achieve optimum steering effort.

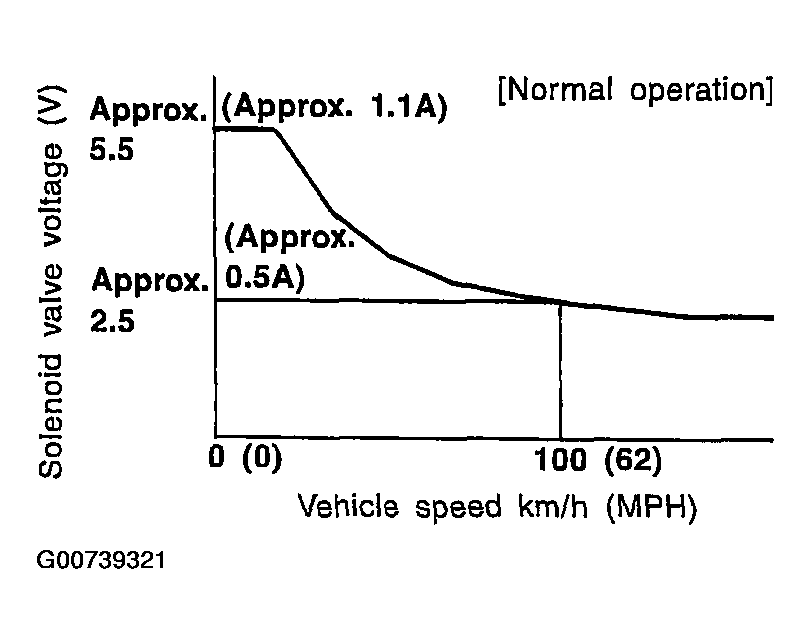

Fig 1: View Of Solenoid Valve Sensitivity

Courtesy of NISSAN MOTOR CO., U.S.A.
