Checking Fluid Level

Stop engine before performing a fluid level check.
Ensure that fluid level is between the MAX range and MIN level.

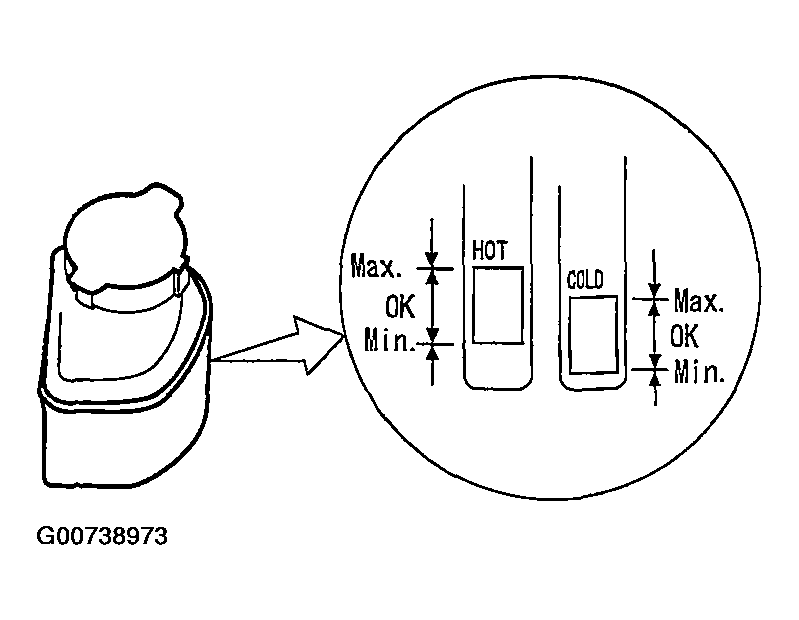

Fig 1: Displaying Power Steering Fluid Levels
Courtesy of NISSAN MOTOR CO., U.S.A.
Because fluid level differs within the HOT range and the COLD range, check it carefully.
1. HOT : Fluid temperatures from 50 to 80°C (122 to 176°F)
2. COLD : Fluid temperatures from 0 to 30°C (32 to 86°F)
NOTE:
- Do not overfill the Max level.
- Do not reuse any used power steering fluid.
- Recommended fluid is Genuine NISSAN PSF or equivalent.
