Power Steering Gear And Linkage: Component

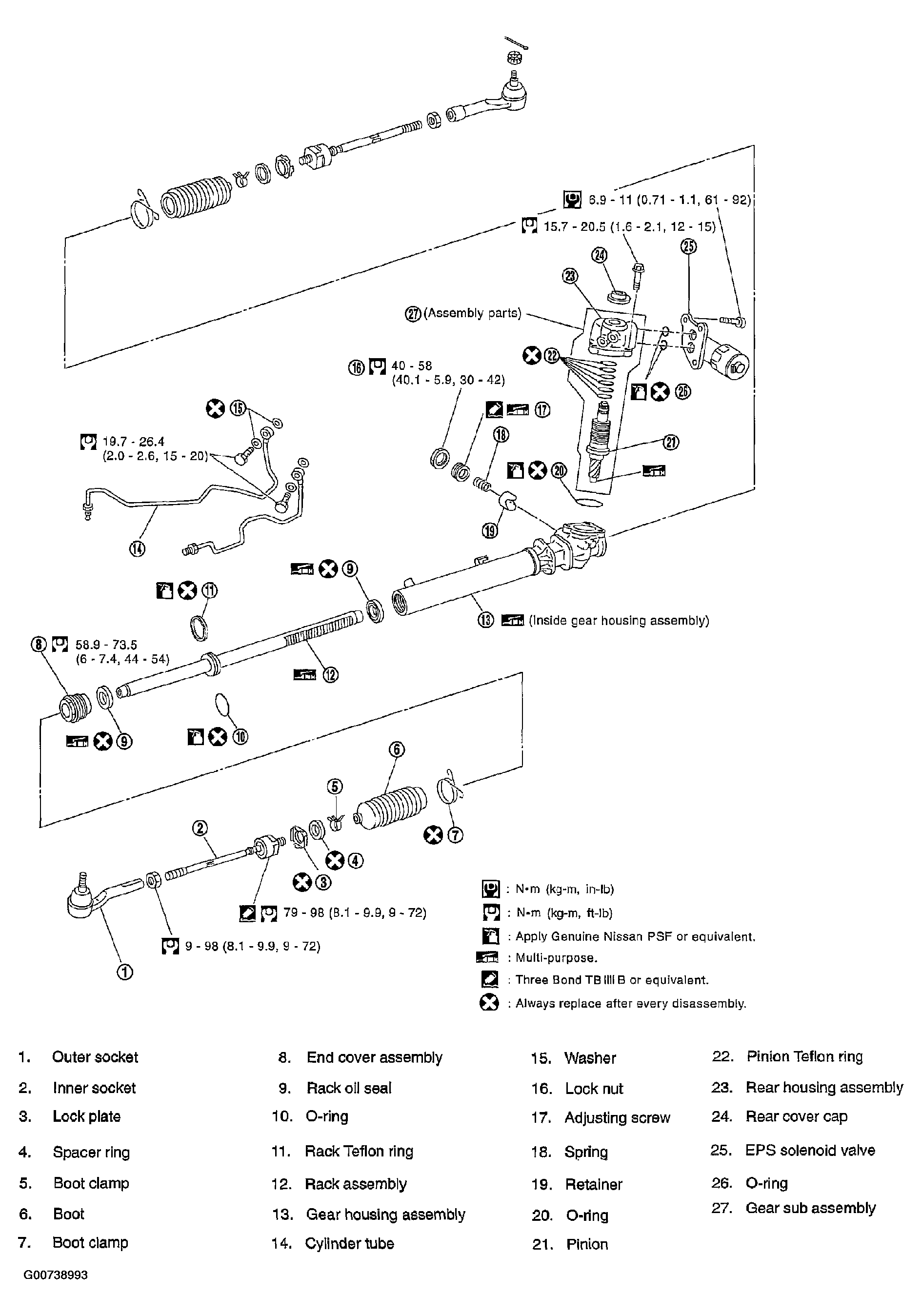

Fig 1: Displaying Power Steering Gear & Linkage Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.

Fig 2: Demonstrating Proper Securing Of Steering Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.
