Steering Outer Socket And Inner Socket

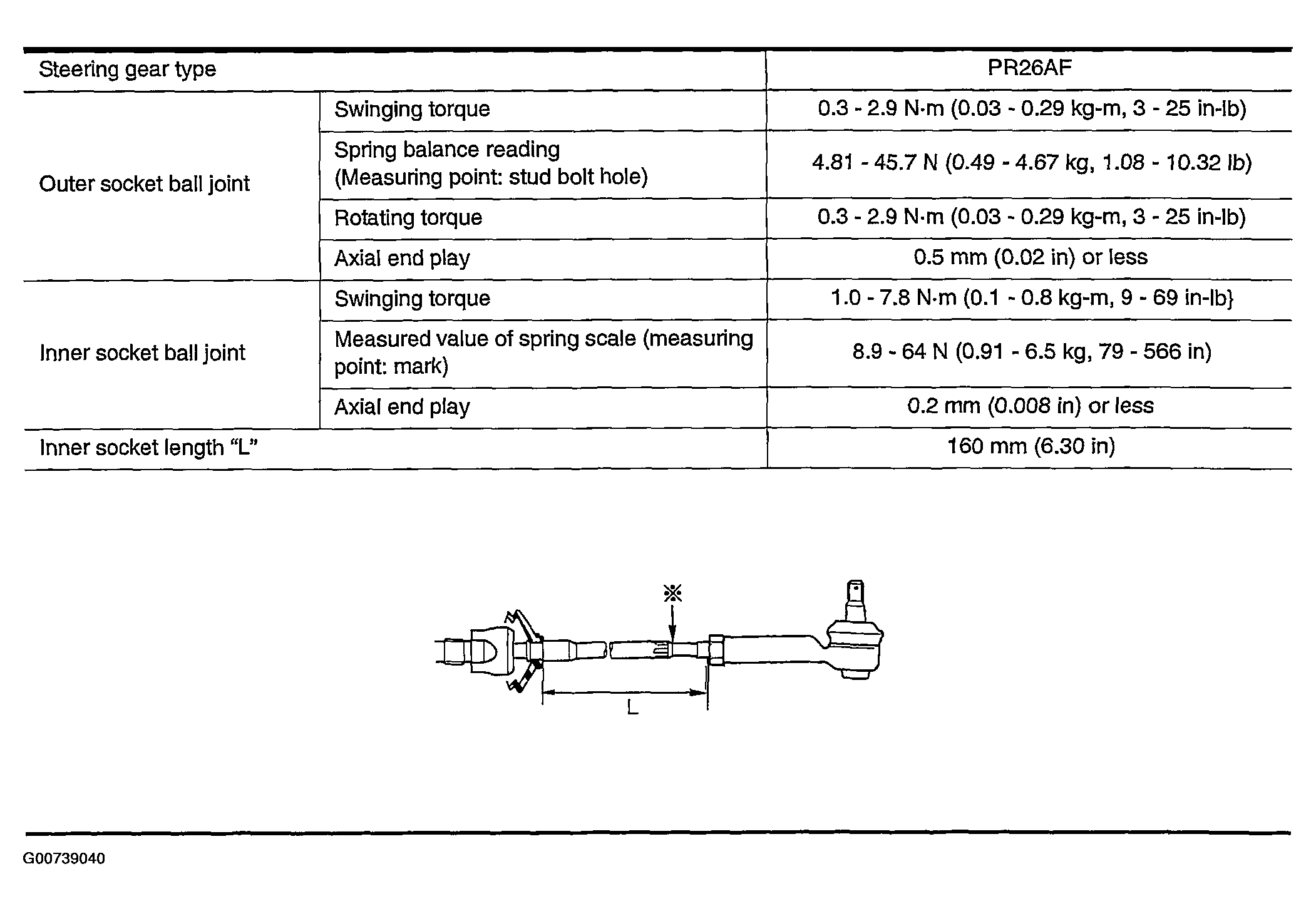

Fig 1: Steering Outer Socket & Inner Socket Specifications
G00739040Courtesy of NISSAN MOTOR CO., U.S.A.
