Parking Components: Components

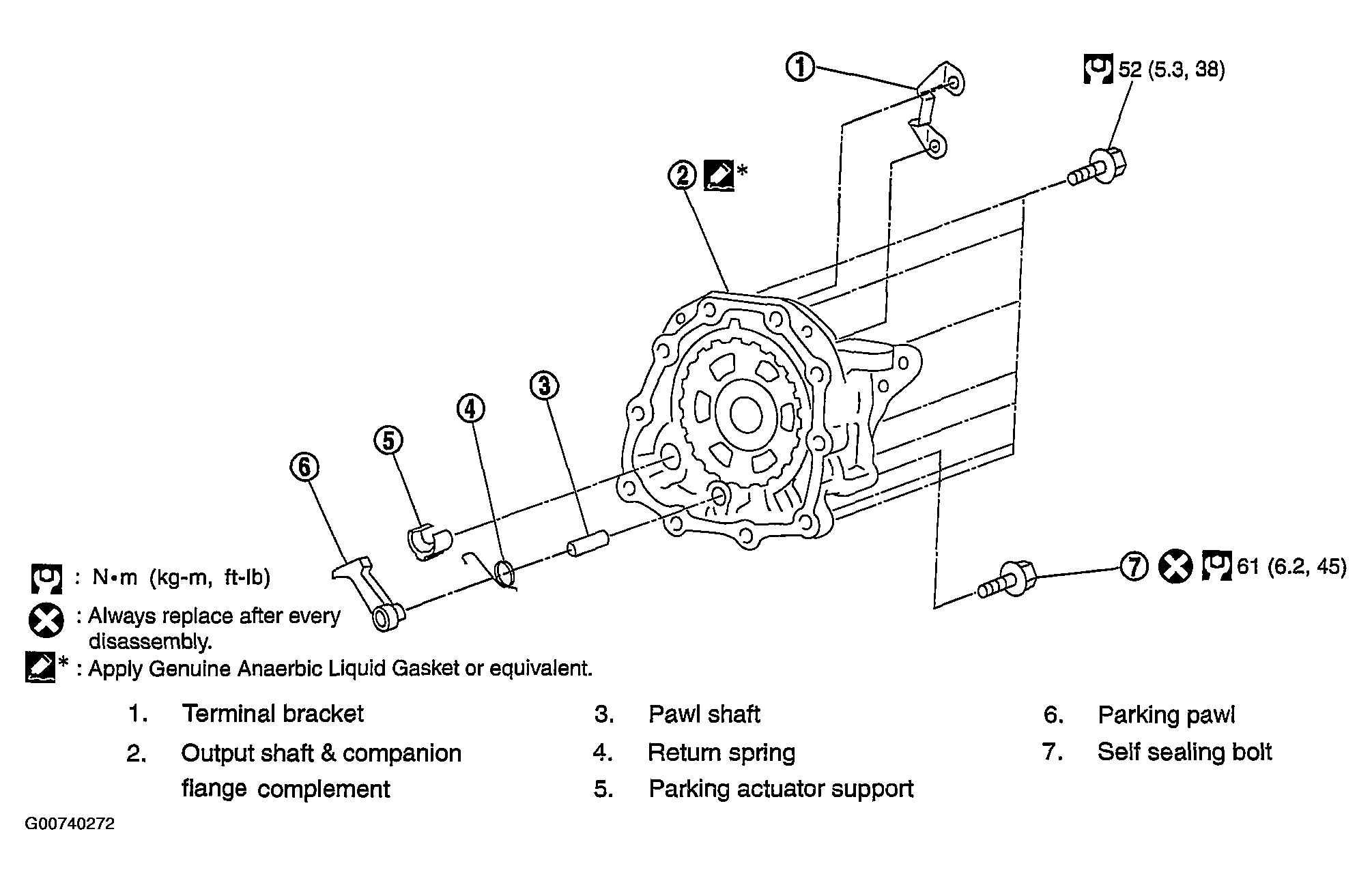

Fig 1: View Of Components

G00740272

Courtesy of NISSAN MOTOR CO., U.S.A.
