Revolution Sensor: Installation

CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level. Refer to CHANGING A/T FLUID  and CHECKING A/T FLUID .
  1. Install revolution sensor in transmission assembly.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal fillings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.
    1. : 5.8 N.m (0.59 kg-m, 51 in-lb)
  2. Connect revolution sensor connector.
  3. Securely fasten revolution sensor harness with terminal clip.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent.) to output shaft & companion flange complement as shown in illustration.
    CAUTION: Complete remove all moisture, oil and old sealant, etc. From the transmission case and output shaft & companion flange complement mounting surfaces.

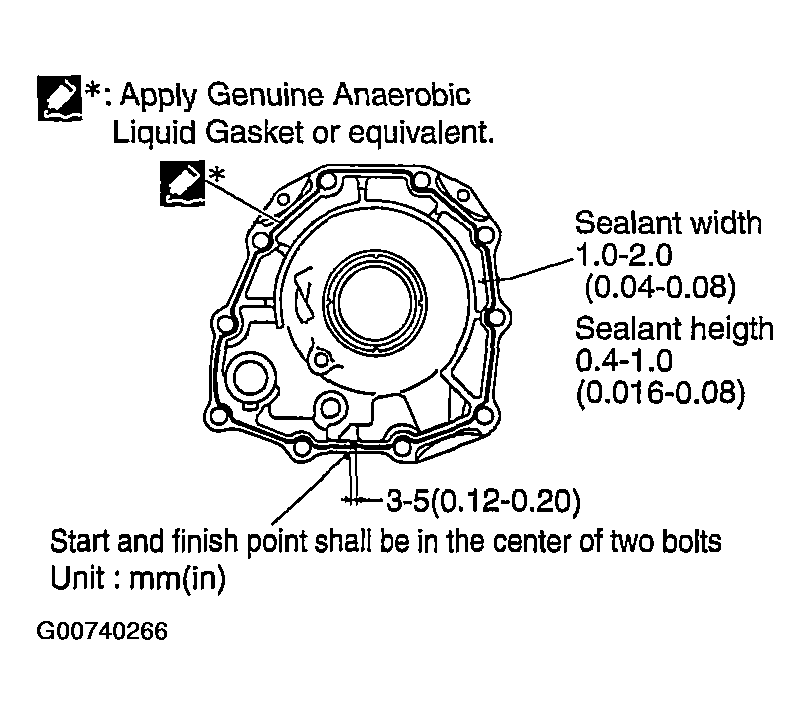

    Fig 1: Applying Sealant
    G00740266Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install output shaft & companion flange complement in transmission assembly.
    Fig 2: Installing Output Shaft & Companion Flange Complement In Transmission Assembly
    G00740267Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten output shaft & companion flange complement mounting bolts to specified torque. (Because terminal bracket is tightened together with output shaft & companion flange, it should be installed before step  5.)
    CAUTION: Do not reuse self-sealing bolt.
    1. Output shaft & companion flange complement mounting bolt:
    2. : 52 N.m (5.3 kg-m, 38 ft-lb)
    1. Self-sealing bolt:
    2. : 61 N.m (6.2 kg-m, 45 ft-lb)
  7. Install engine rear member. Refer to INSTALLATION . Tighten bolts to 49 N.m (36 ft-lbs)
  8. Install oil pan on transmission case.
    1. Install oil pan gasket on oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
    2. Install oil pan on transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
      CAUTION: Do not reuse oil pan mounting bolts.
      1. : 7.9 N.m (0.81 kg-m, 70 in-lb)
  9. Install drain plug on oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. : 34 N.m (3.5 kg-m, 25 ft-lb)

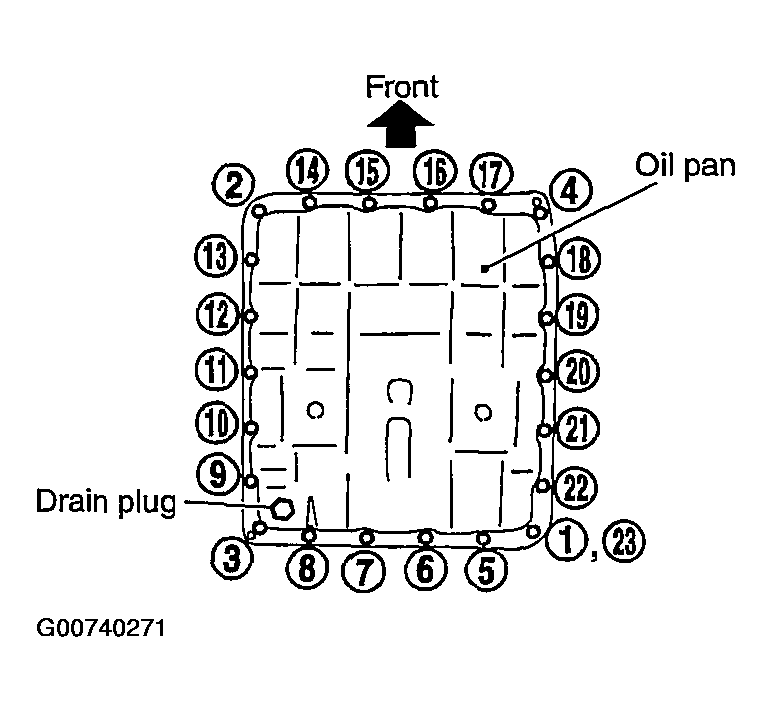

    Fig 3: Oil Pan Torque Sequence
    G00740271Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect heated oxygen sensor 2 harness connector.
  11. Install propeller shaft. Refer to INSTALLATION
  12. Install exhaust front tube and center muffler. Refer to REMOVAL AND INSTALLATION .
  13. Connect the negative battery terminal
    14. CAUTION: Using automatic transmission fluid other than Genuine Nissan Matic J ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission, which is not covered by the INFINITI new vehicle limited warranty.
  14. Pour ATF into transmission assembly. Refer to A/T FLUID .
