TCM Inspection Table

Data are reference value and are measured between each terminal and ground.

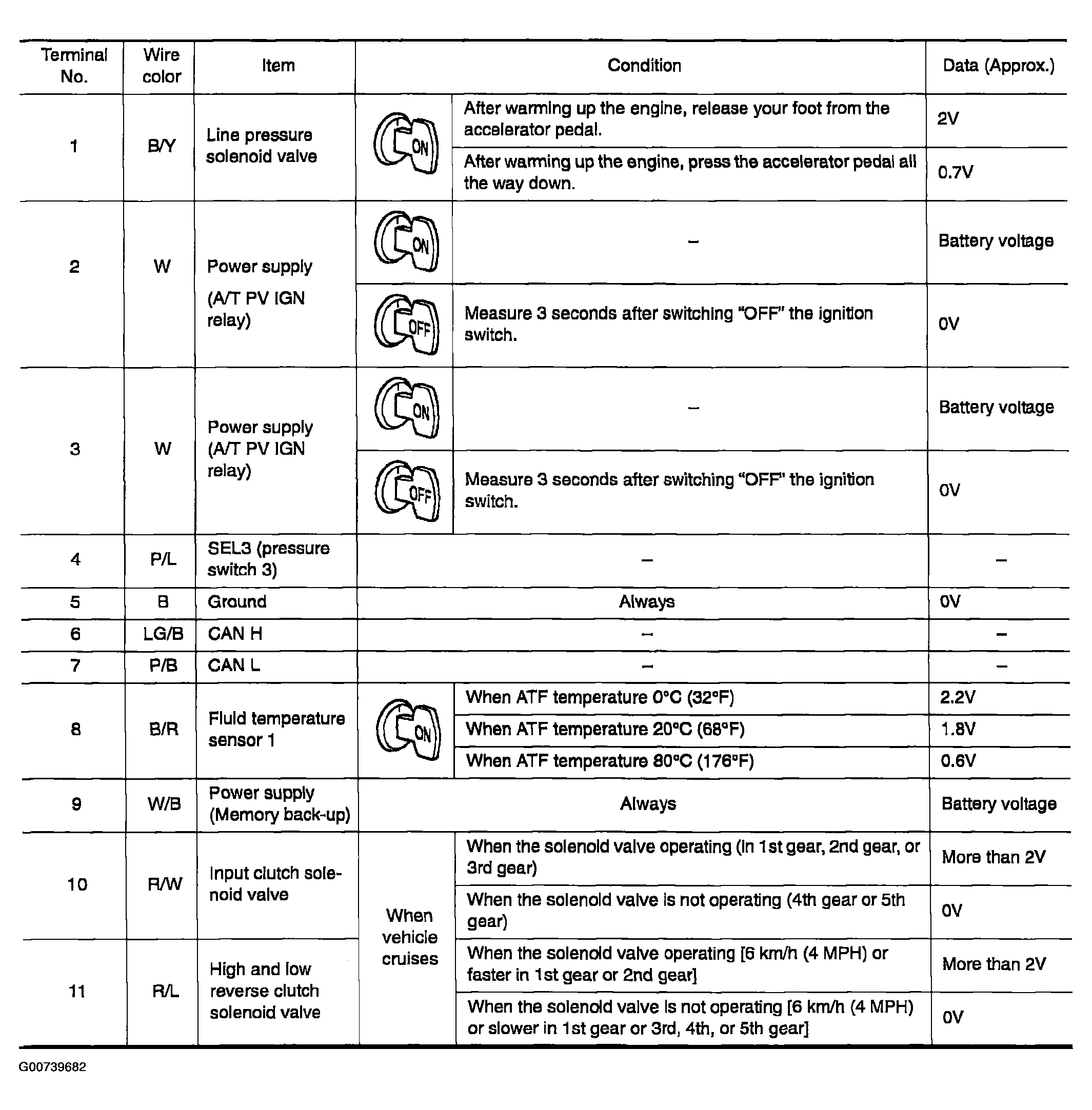

Fig 1: TCM Inspection Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: TCM Inspection Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

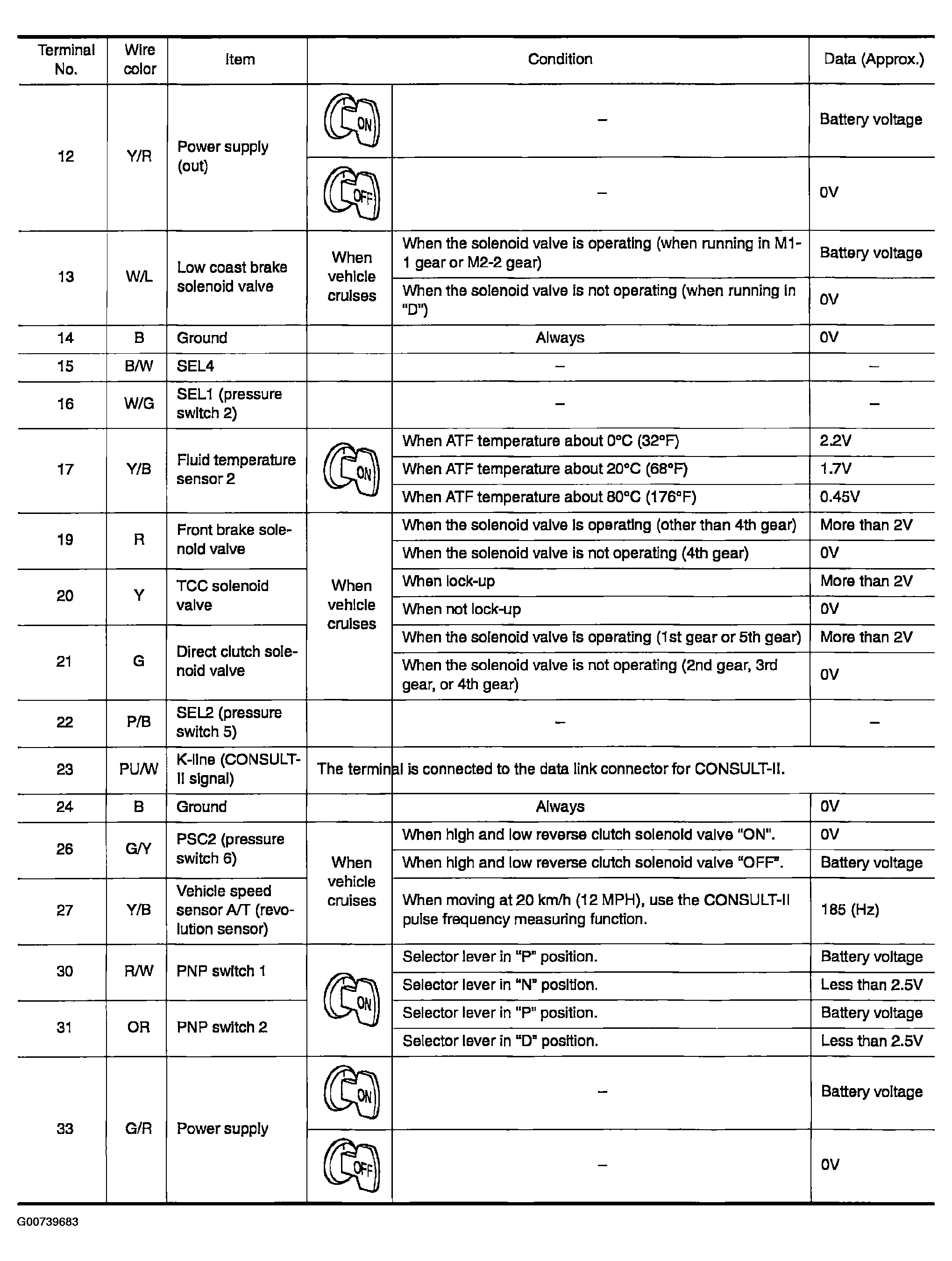

Fig 3: TCM Inspection Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
