Removal and Installation: Notes

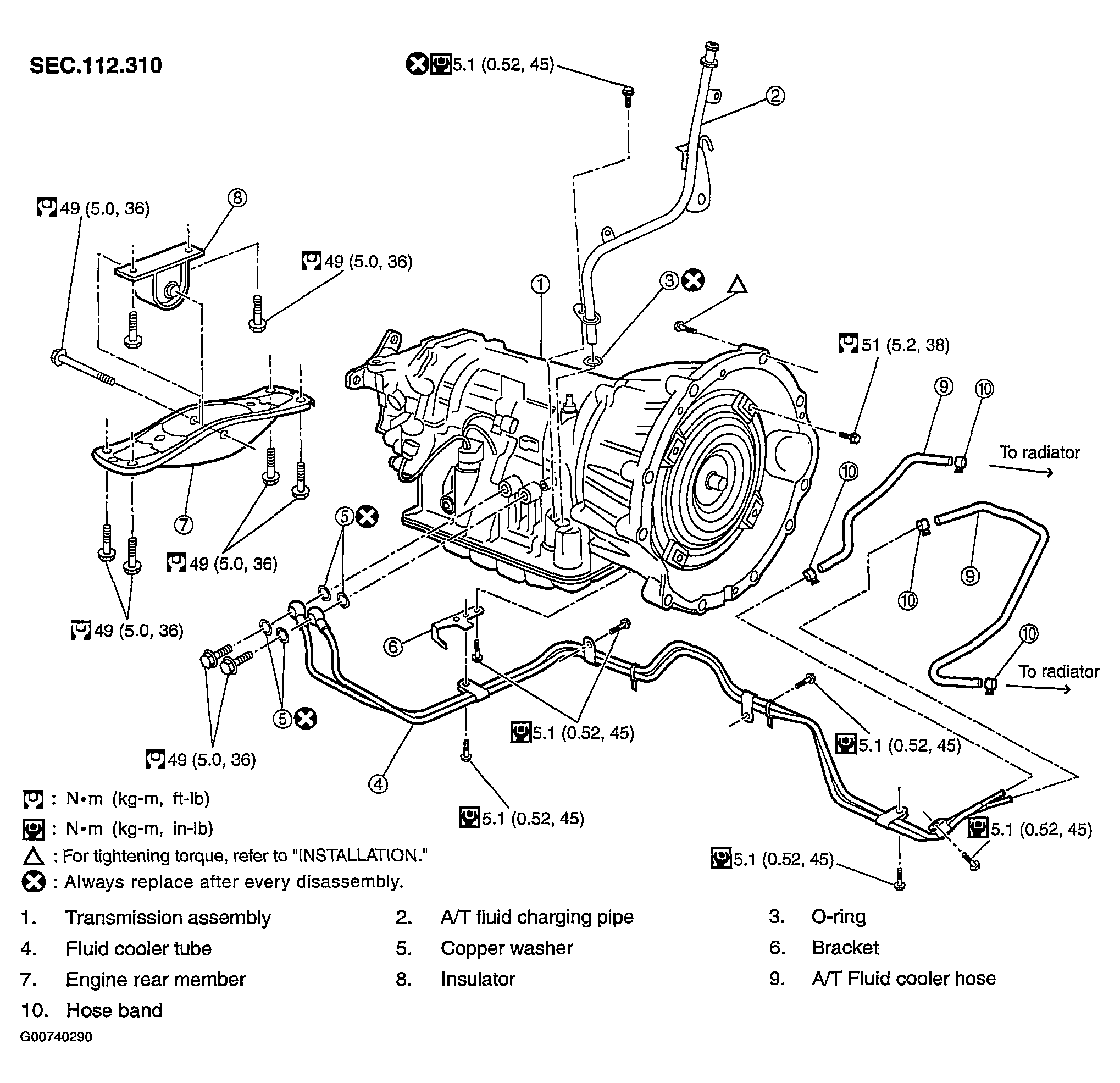

Fig 1: View Of Exterior Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
