Terminals And Reference Value For ICC Unit

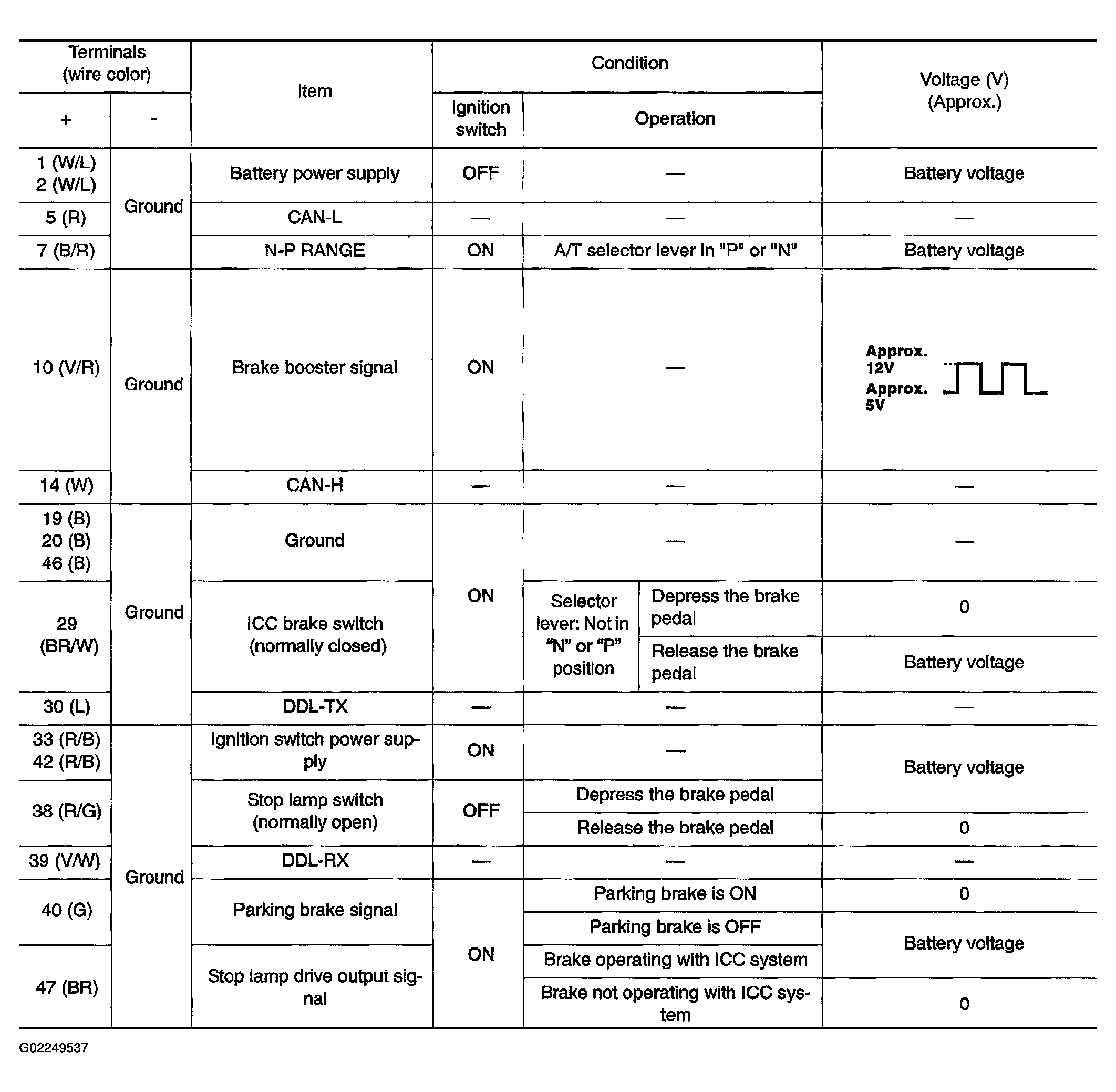

Fig 1: Terminals & Reference Value For ICC Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
