These self-diagnoses have the one trip detection logic.

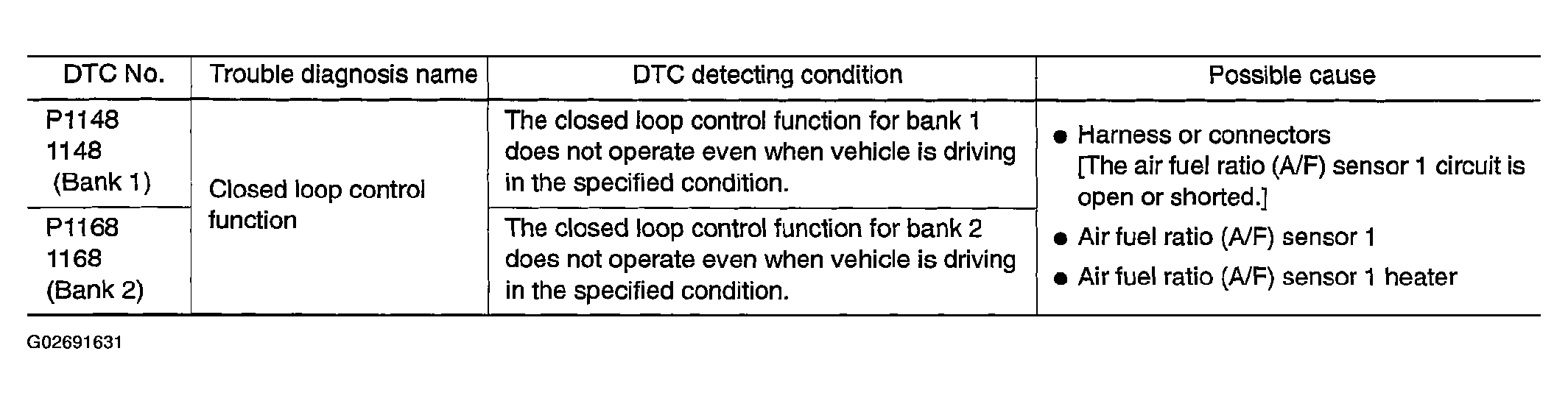

Fig 1: DTC P1148, P1168 Closed Loop Control - On Board Diagnosis Logic
G02691631Courtesy of NISSAN MOTOR CO., U.S.A.

DTC P1148 or P1168 is displayed with another DTC for air fuel ratio (A/F) sensor 1.

Perform the trouble diagnosis for the corresponding DTC.
