ICC Sensor

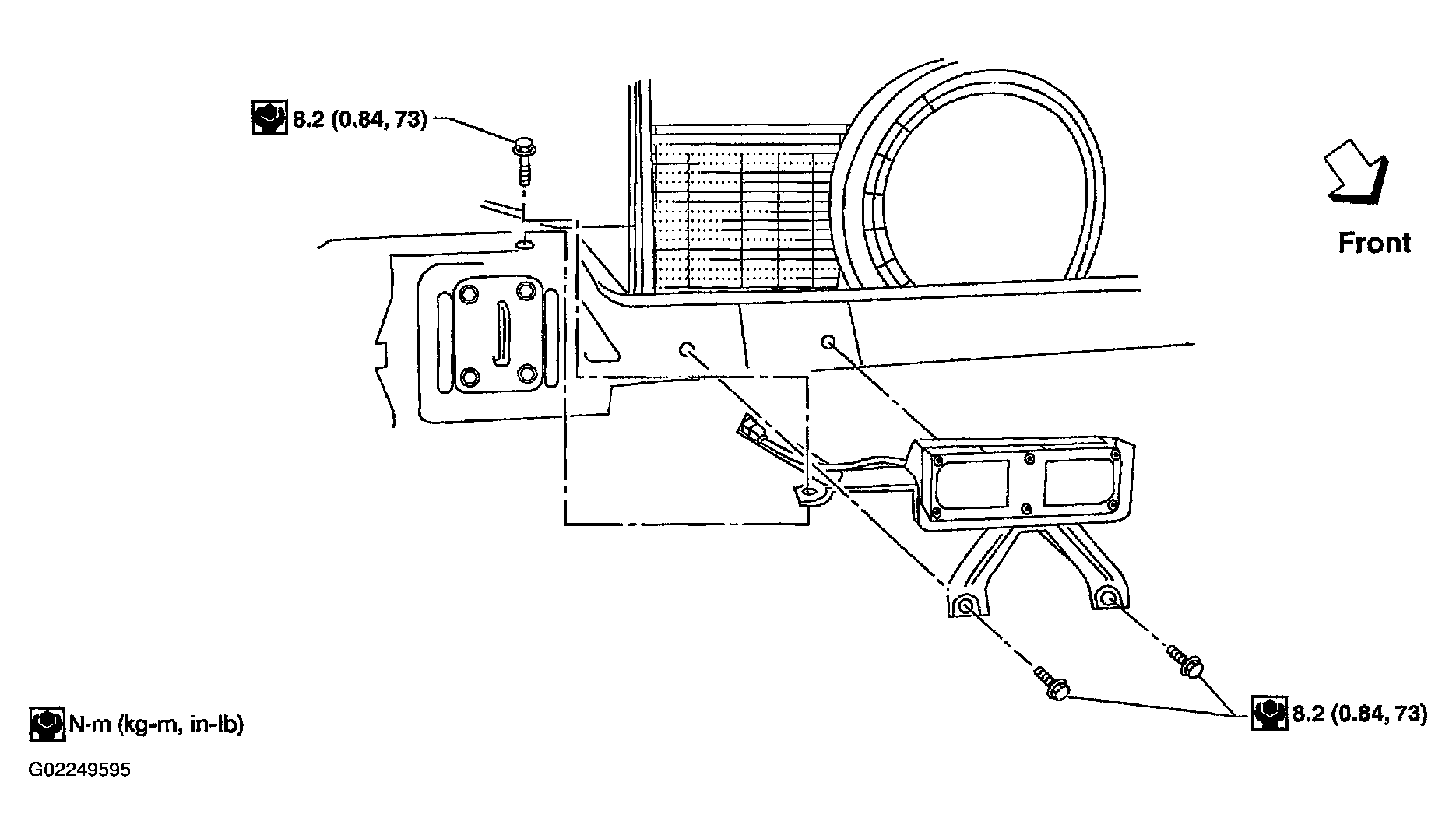

Fig 1: ICC Sensor Removal & Installation
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Perform the laser beam aiming procedure every time the ICC sensor is removed or installed.
Courtesy of NISSAN MOTOR CO., U.S.A.
