Removal and Installation: Removal

  1. Remove center console. Refer to CENTER CONSOLE .
  2. Remove yaw rate/side/decel G sensor attaching nuts.

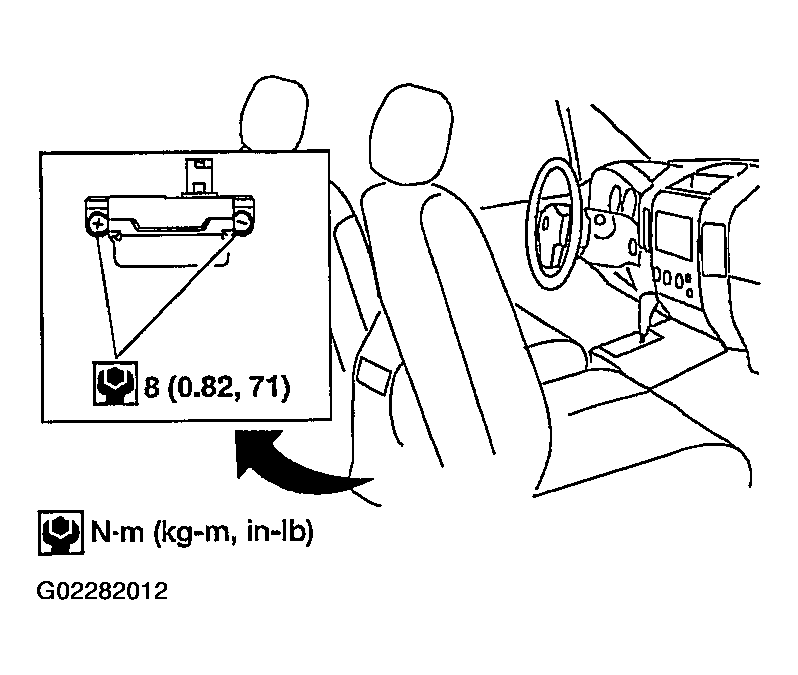

    Fig 1: Torque Specification Of Yaw Rate/Side/Decel G Sensor Attaching Nuts
    G02282012Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not use power tools to remove or install yaw rate/side/decel G sensor.
    • Do not drop or strike the yaw rate/side/decel G sensor.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.
