Removal and Installation: Installation

Installation is in the reverse order of removal.

• Connect the quick connector as follows:
  • Check the connection for any damage or foreign materials.
  • Align the connector with the pipe, then insert the connector straight into the pipe until a click is heard.
  • After connecting the quick connector, make sure that the connection is secure by checking as follows:

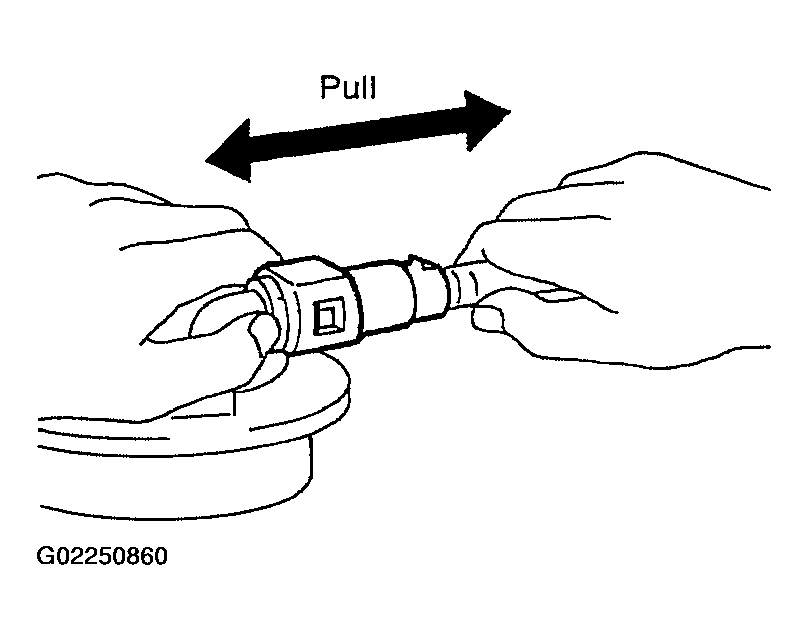

    Fig 1: Pulling Tube And Connector To Make Sure They Are Connected Properly

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Pull the tube and the connector to make sure they are securely connected.
  • Visually inspect the connector to make sure the two retainer tabs are securely connected.
