On Board Diagnosis Logic

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1 signal is not inordinately low.

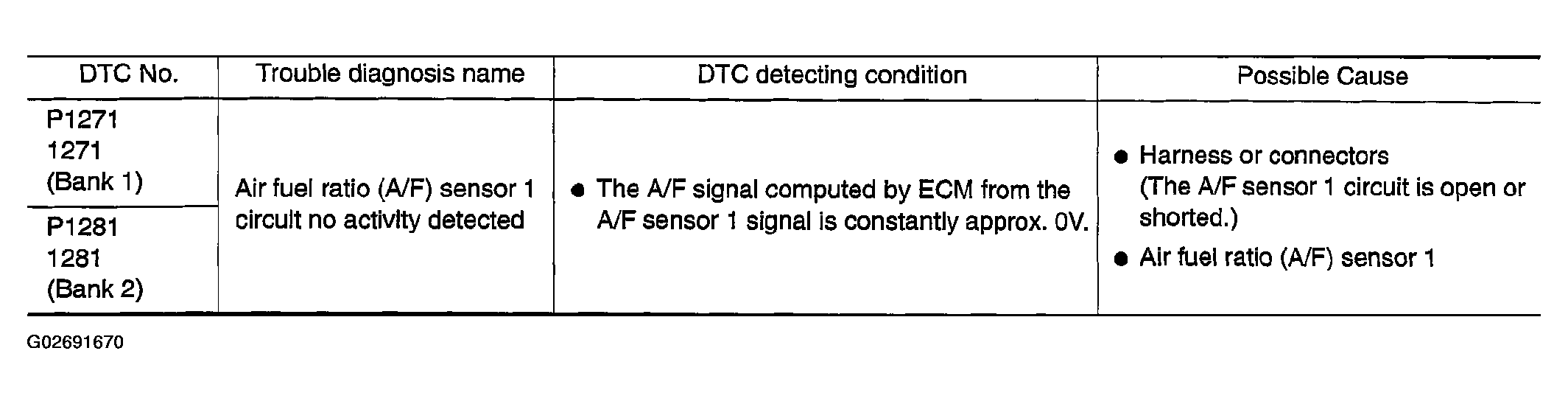

Fig 1: DTC P1271, P1281 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
