Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the accelerator and brake pedals to the frontmost position.
  2. Turn the ignition switch OFF and disconnect the negative battery terminal.
  3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
    • Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.
  4. Disconnect the adjustable pedal electric motor electrical connector.
  5. Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.
  6. Disconnect the accelerator position sensor electrical connector.
  7. Remove the two upper and one lower accelerator pedal nuts.
  8. Remove the adjustable accelerator pedal assembly.

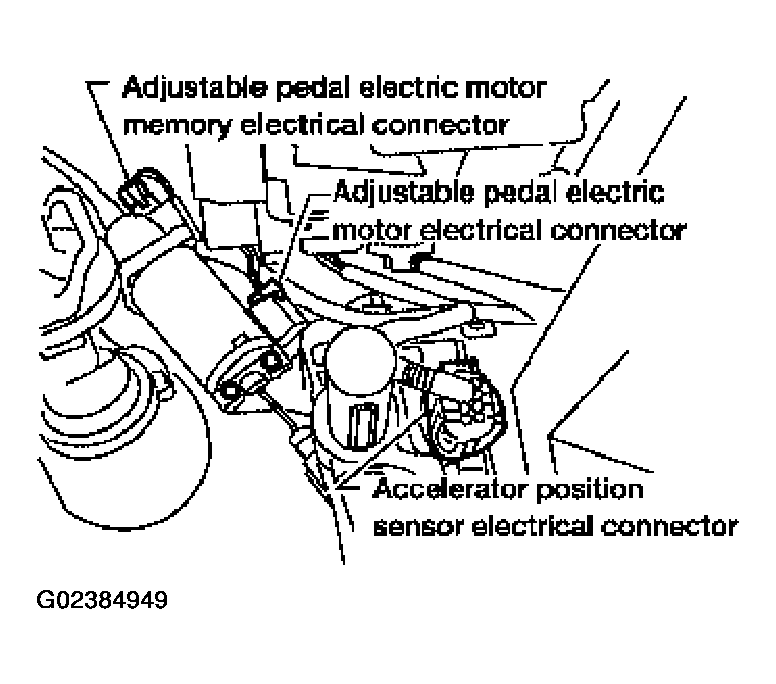

    Fig 1: Identifying Adjustable Pedal Electric Motor Electrical Connector
    G02384949Courtesy of NISSAN MOTOR CO., U.S.A.
