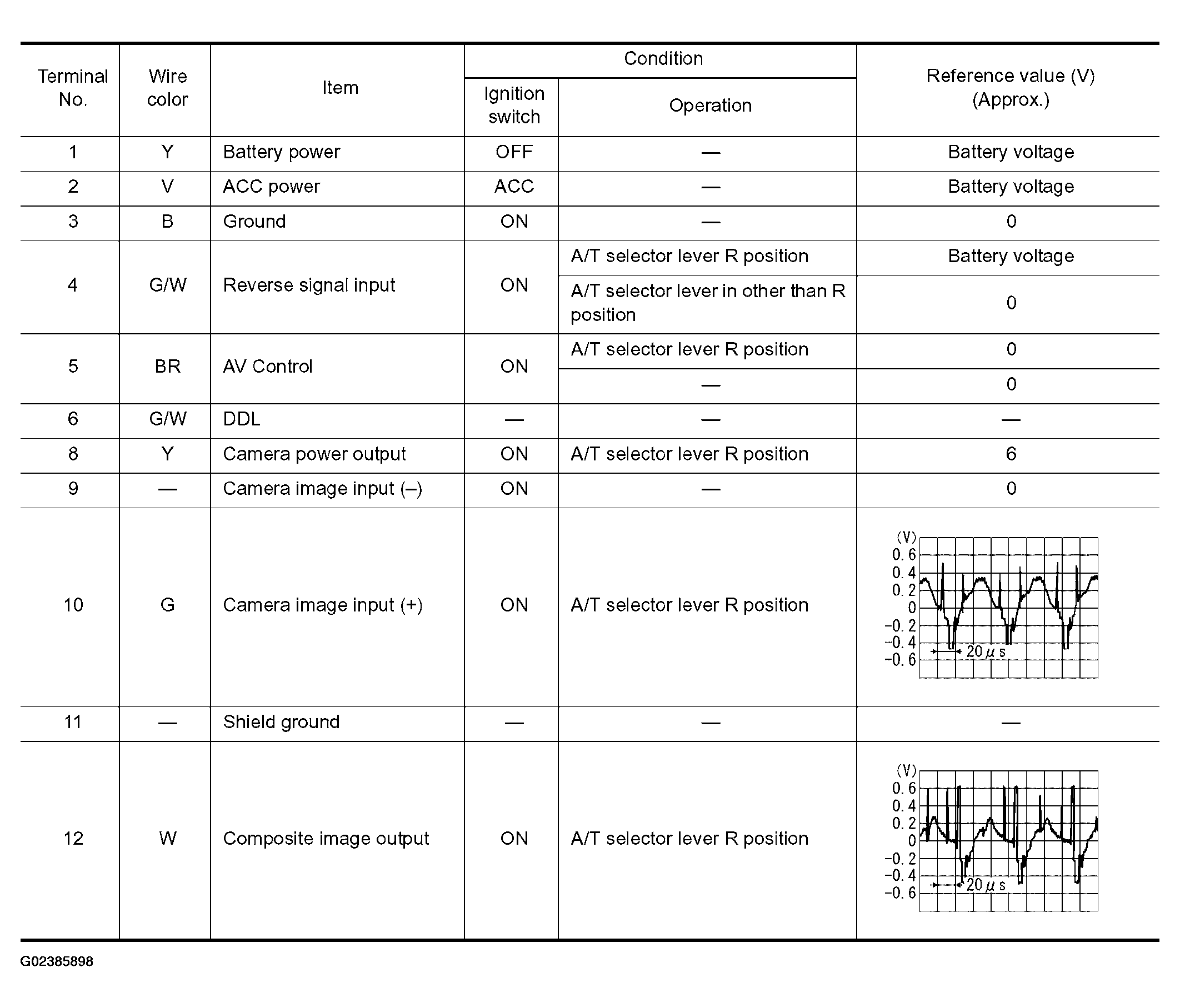

Terminals and Reference Value for Rear View Camera Control Unit

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
