Write Configuration Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

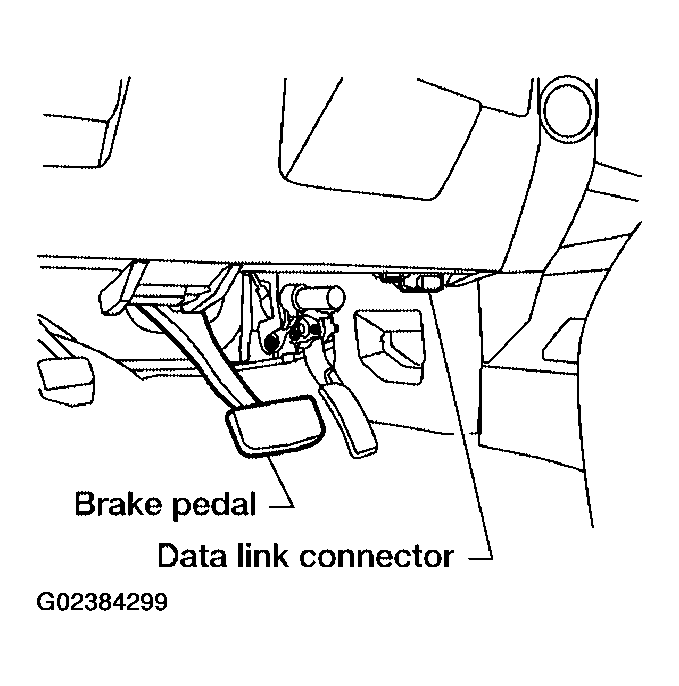

    Fig 1: Identifying Data Link Connector And Brake Pedal
    G02384299Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

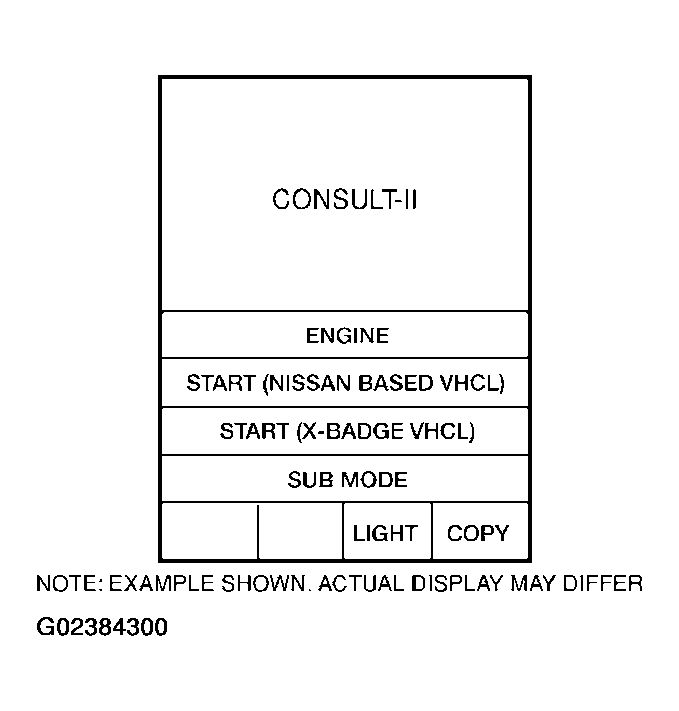

    Fig 2: Display Start Screen (Nissan Based VHCL)
    G02384300Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

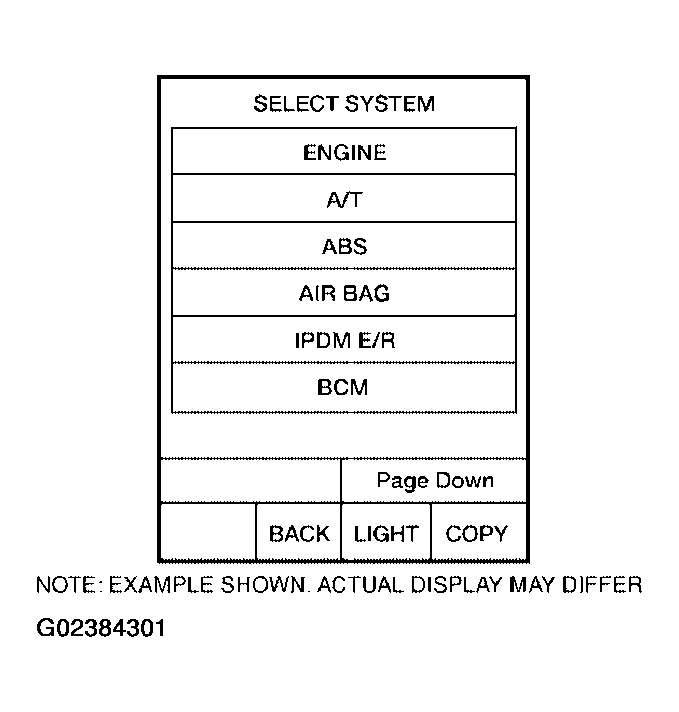

    Fig 3: Display Select System Screen
    G02384301Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

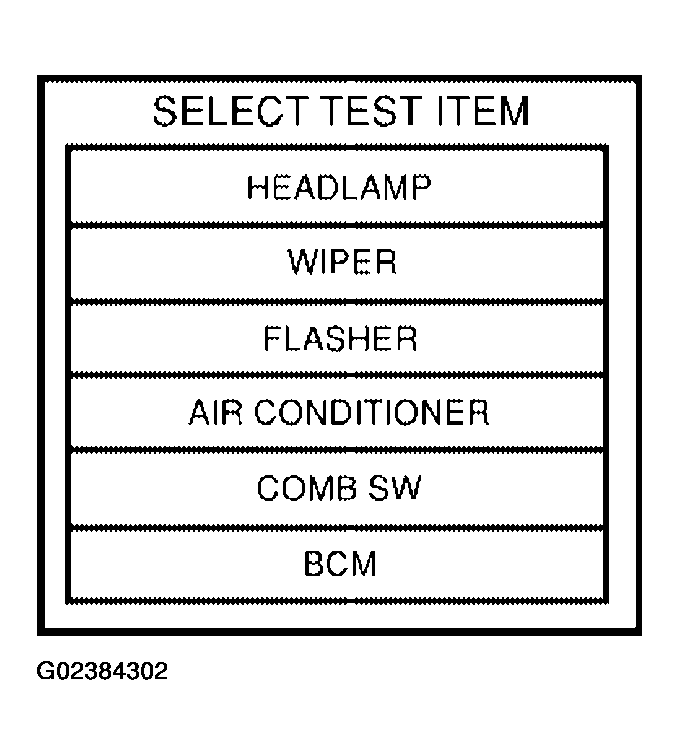

    Fig 4: Display Select Test Item Screen
    G02384302Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

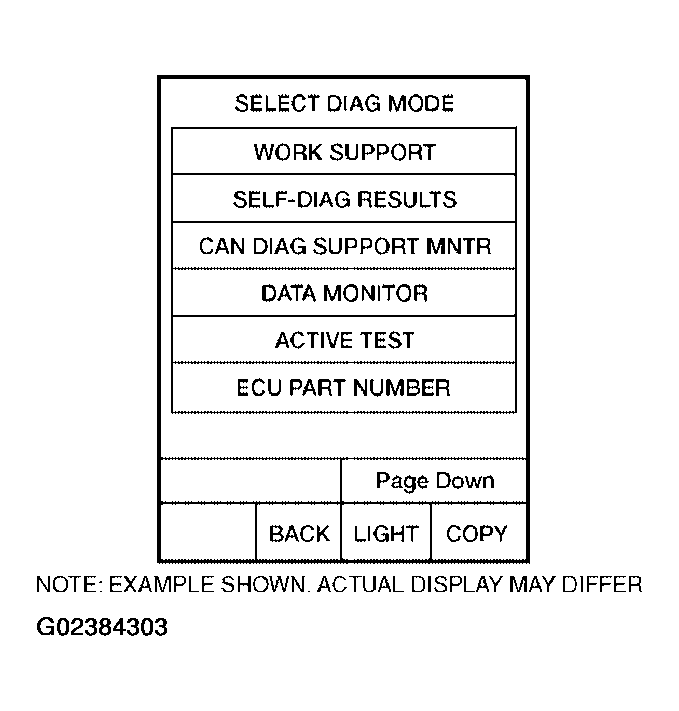

    Fig 5: Display Select Diag Mode Screen (1 Of 2)
    G02384303Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "JA60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".

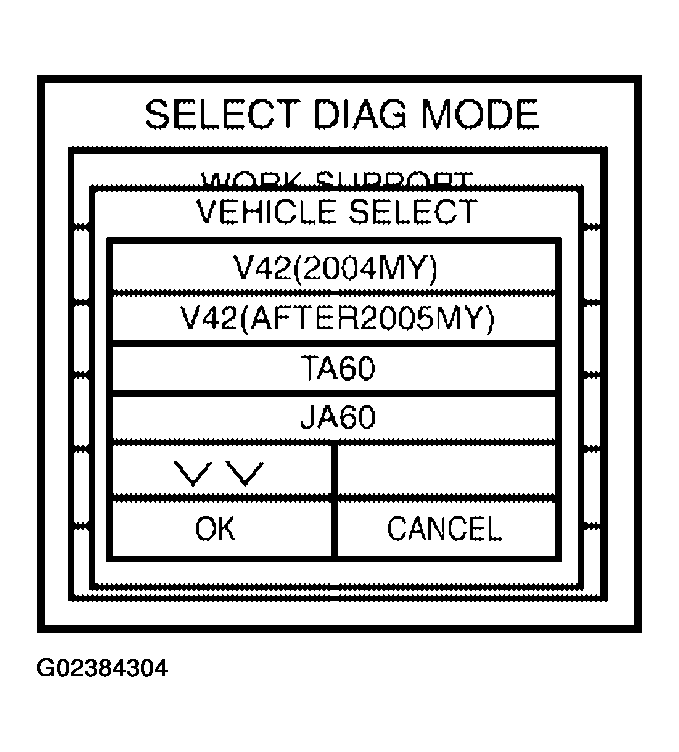

    Fig 6: Display Select Diag Mode Screen (2 Of 2)
    G02384304Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

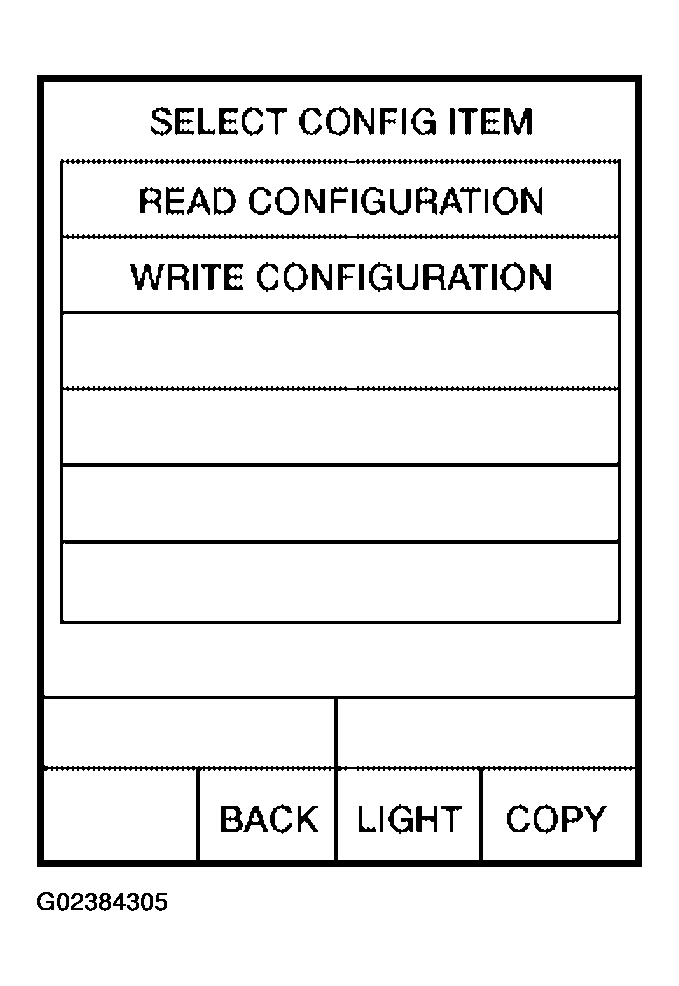

    Fig 7: Display Select Config Item Screen
    G02384305Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "YES".

    For canceling, touch "NO".

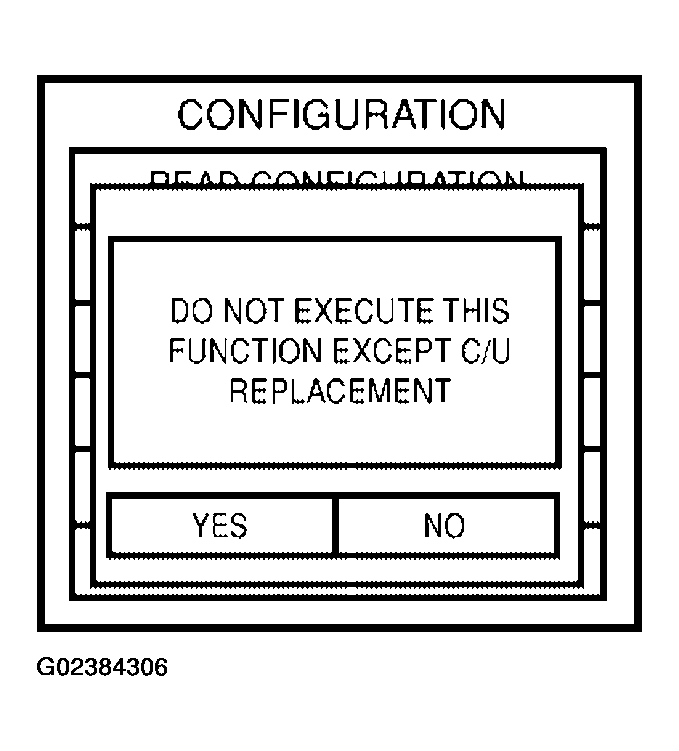

    Fig 8: Cancelling On Configuration Screen
    G02384306Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WITH" or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.
    • Depending on CONSULT-II software version being used, some or all of the write configuration items shown in the following configuration lists may be displayed. If an item does not appear on the CONSULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually set or changed.
    ITEM LIST

    ITEM SET VAL
    DTRL WITH <--> WITHOUT
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen. If "CANCEL" is touched, it will return to previous screen.

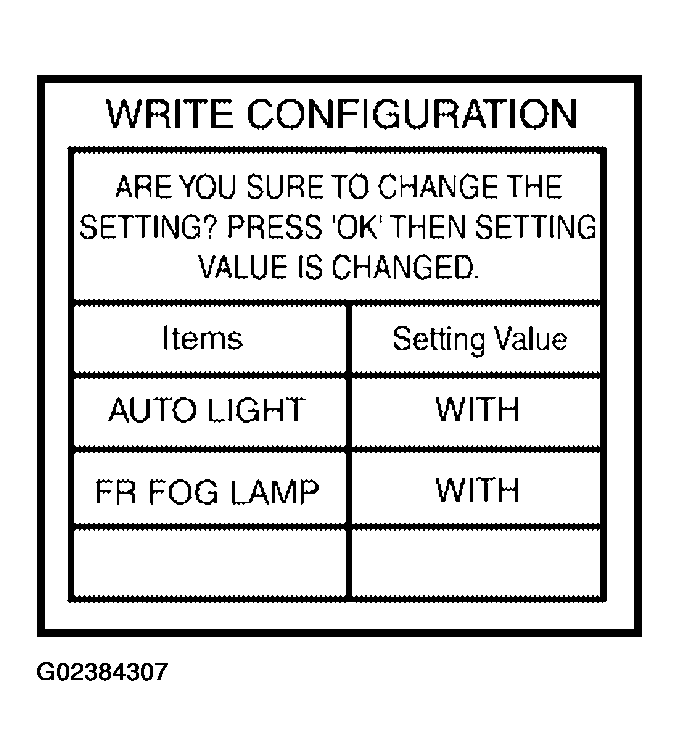

    Fig 9: Identifying Write Configuration Screen (1 Of 4)
    G02384307Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

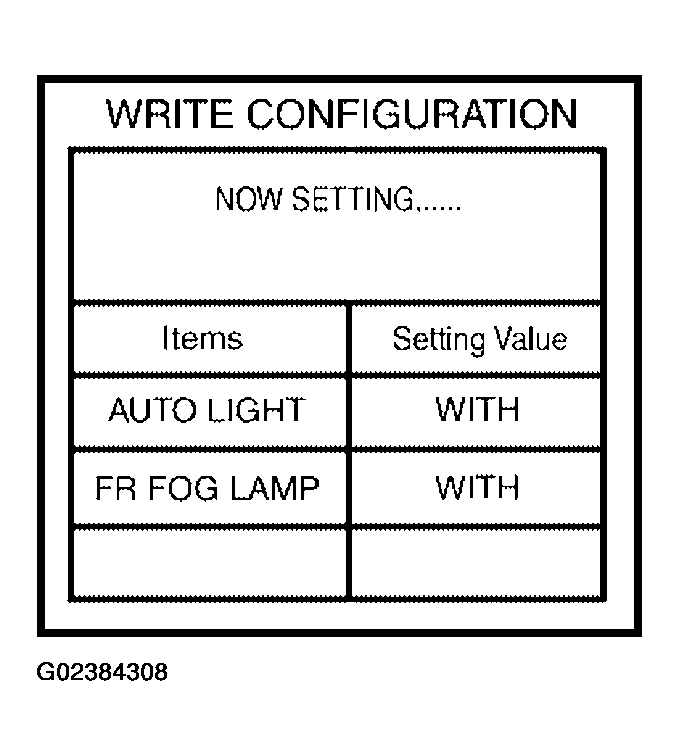

    Fig 10: Identifying Write Configuration Screen (2 Of 4)
    G02384308Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9 .

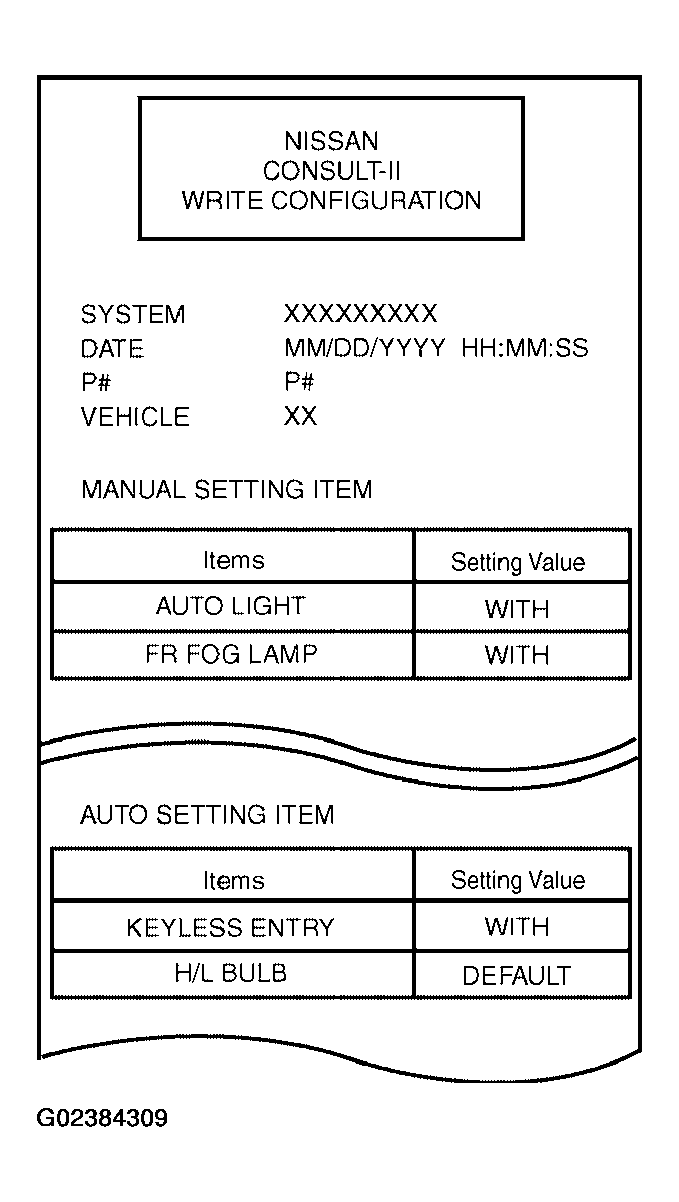

    Fig 11: Identifying Write Configuration Screen (3 Of 4)
    G02384309Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

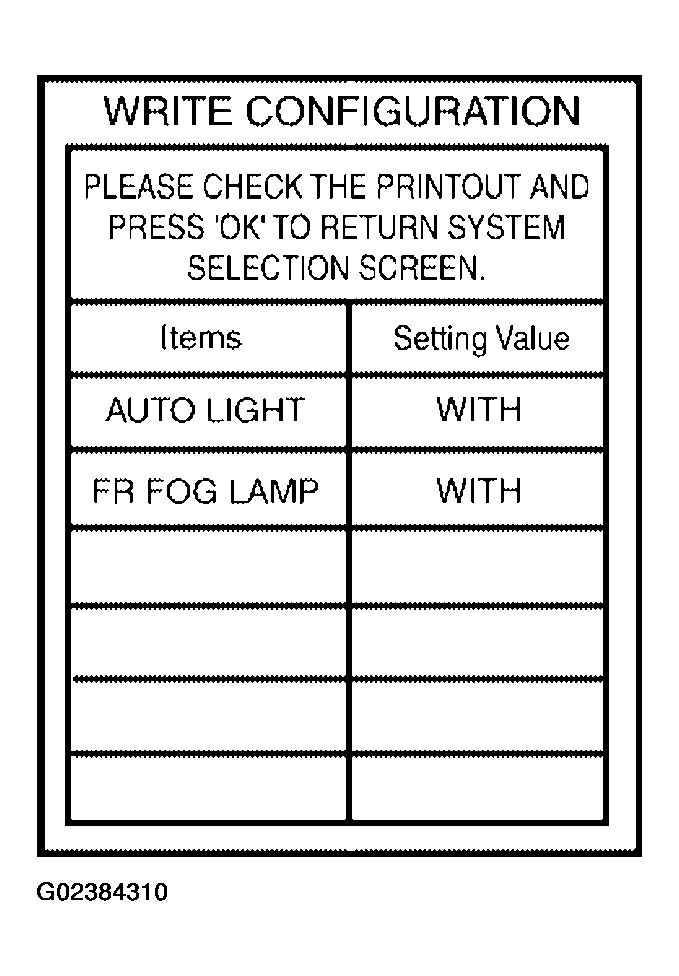

    Fig 12: Identifying Write Configuration Screen (4 Of 4)
    G02384310Courtesy of NISSAN MOTOR CO., U.S.A.
