CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your CAN system type from the following table.

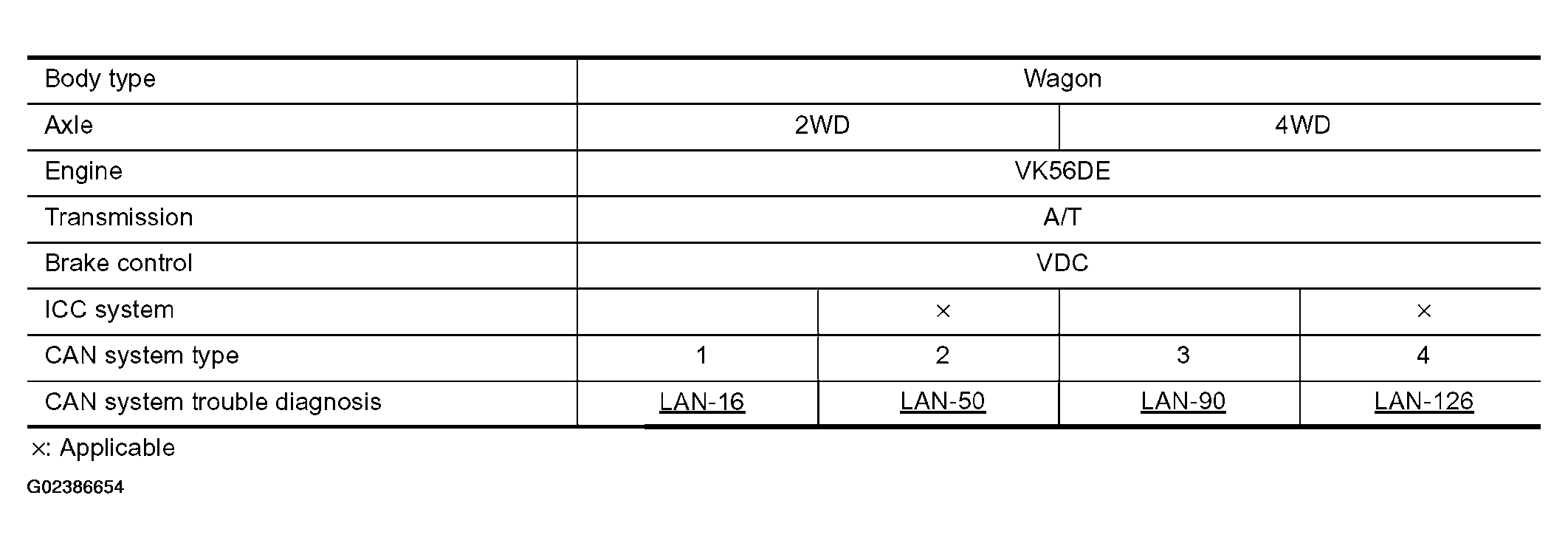

Fig 1: CAN Communication - System Reference

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Vehicles equipped with ICC can be identified by the presence of a ICC switch.

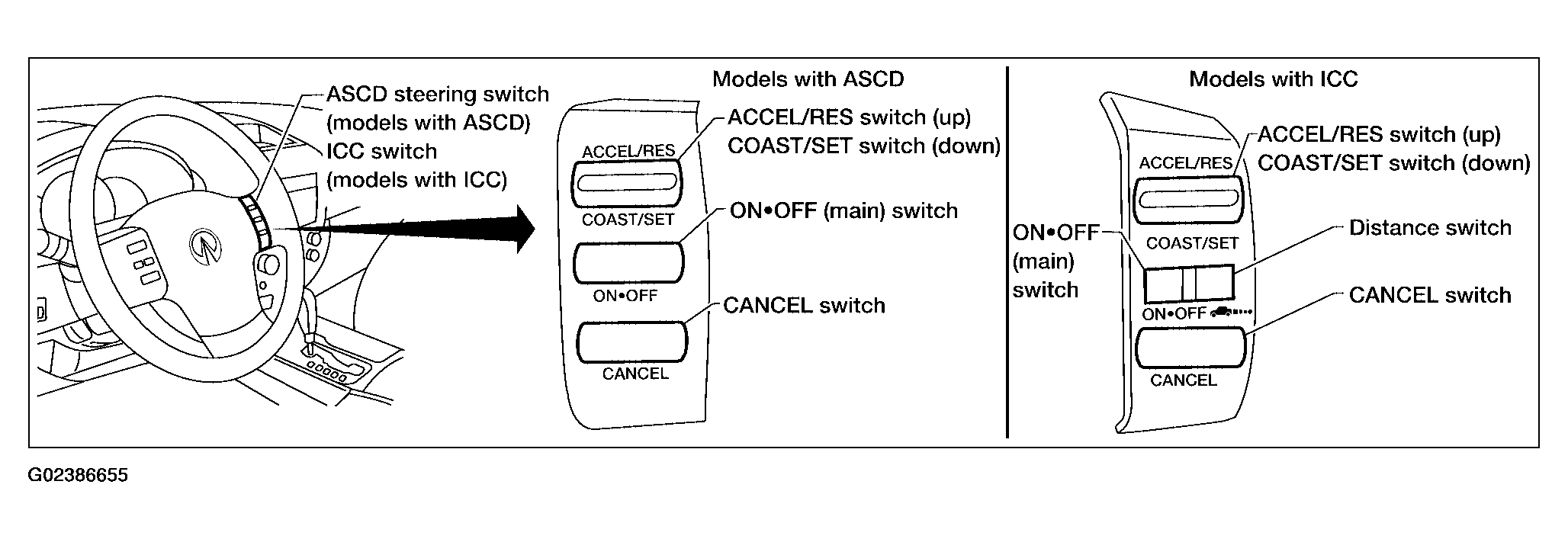

Fig 2: Identifying ICC Switches

Courtesy of NISSAN MOTOR CO., U.S.A.
