Camber And Caster

  1. Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.

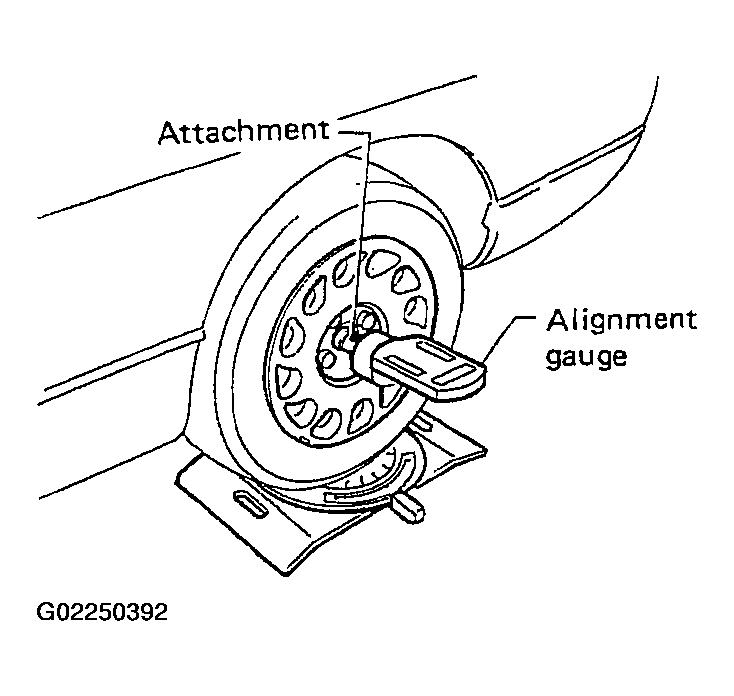

    2. Fig 1: Placement Of Alignment Gauge
    G02250392Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If outside of the specified value, adjust camber and caster using the adjusting bolts in the front lower link.
    CAUTION: After adjusting the camber then check the toe-in.
    NOTE: Camber changes about 3' (0.11°) with each graduation of one adjusting bolt. Refer to table below for examples of lower link adjusting bolt effect on camber and caster.

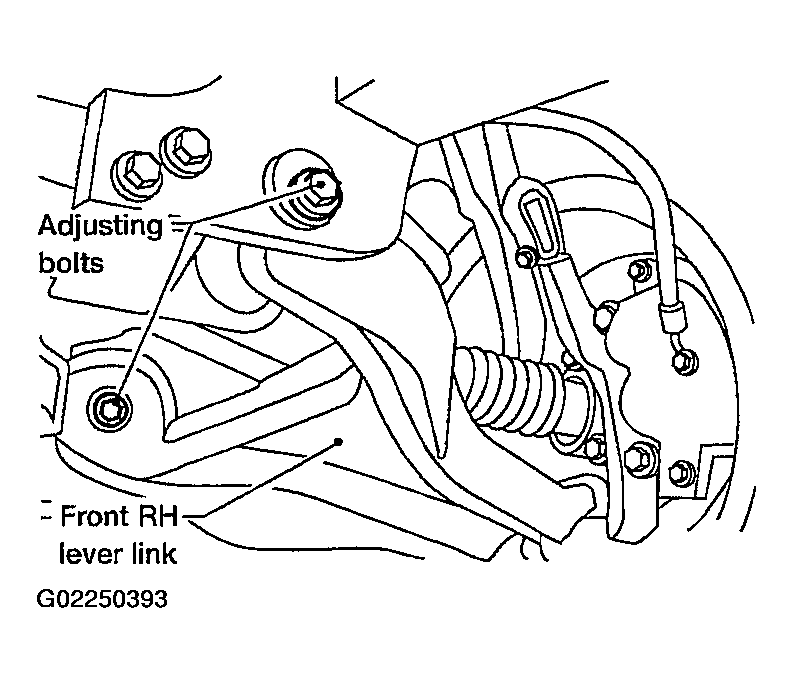

    3. Fig 2: Locating Adjustment Bolts
    G02250393Courtesy of NISSAN MOTOR CO., U.S.A.

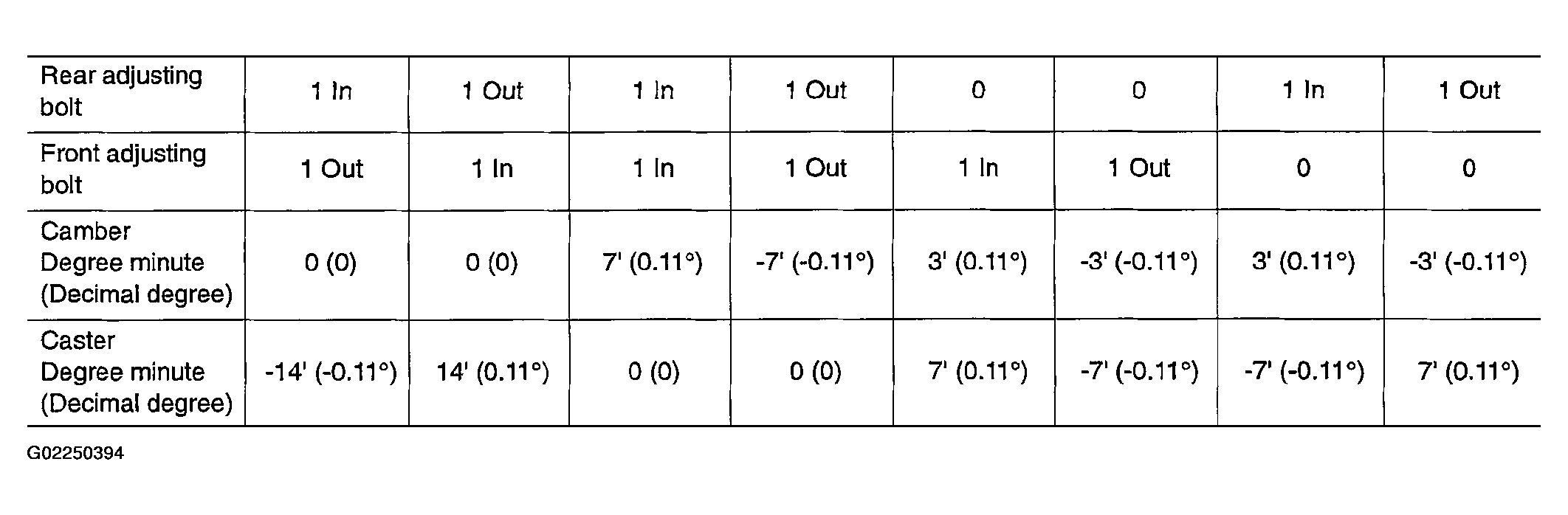

    Fig 3: Specification Table
    G02250394Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Tighten the adjusting bolt nuts to specification.
