Function Of Pressure Switch

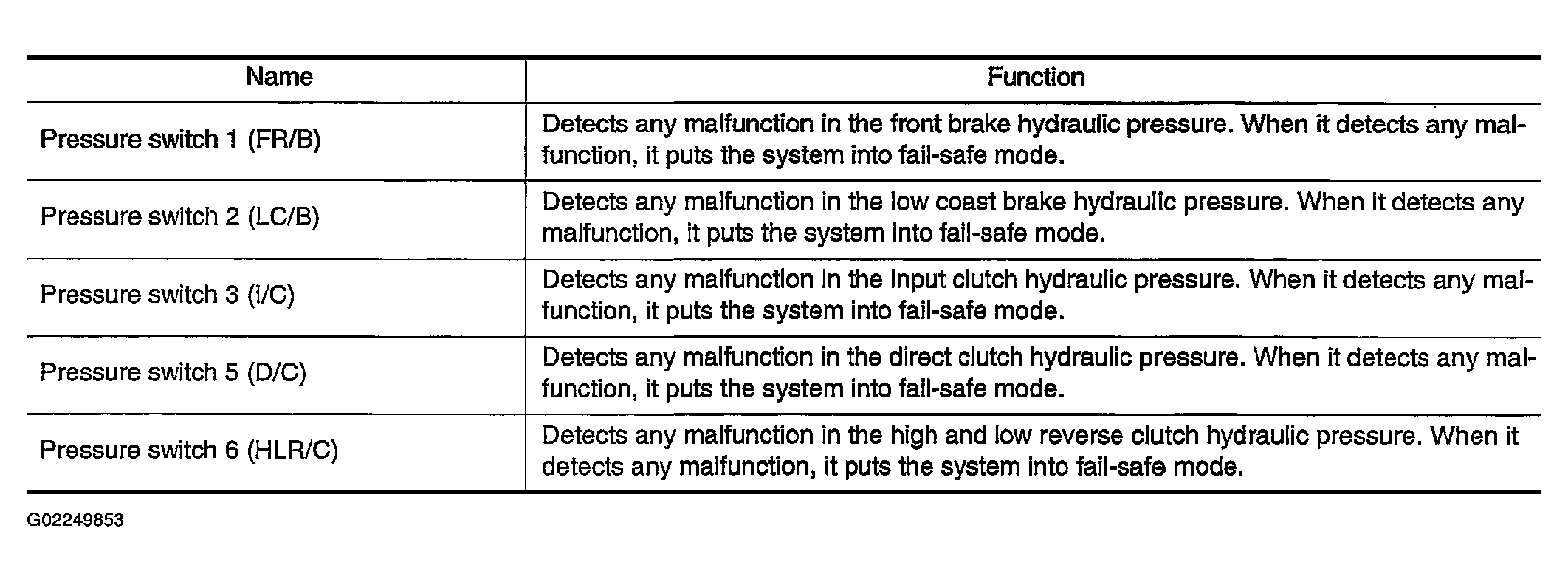

Fig 1: Function Of Pressure Switch Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
